Installing and Setting Up the Command Console Client 2-15
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: c-ch2 Installing and Setting Up the Command Client.doc Last Saved On: 12/5/00 10:31 AM
5. Select a logical unit number and cache option (Figure 2-11). Command
console automatically assigns a logical unit number (LUN) for each
virtual disk. However, if you want to change the LUN, click the down
arrow and select the new number from the list. If you want to enable
writeback cache, check the Enable box; then click Next.

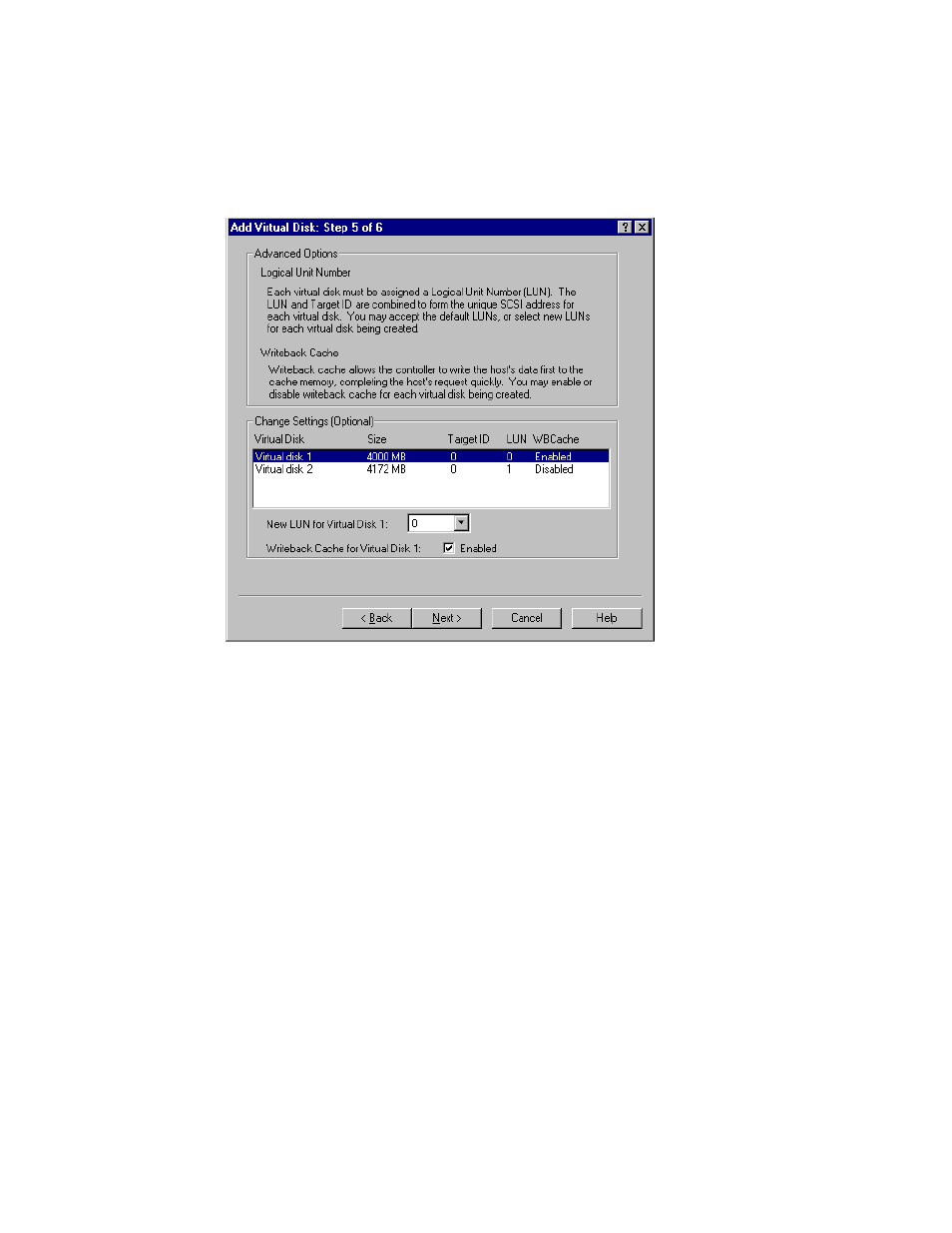

Figure 2-11. Virtual disk wizard step 5
