Creating and Using General Folders
Use folders to help organize your storage. Folders can be dragged and dropped
within the Navigation Tree. Folders can only be placed under the Command
Console root or under another general folder in the Navigation Tree. Folders
can be used to group systems and other general folders, but they cannot be
used to group controllers. In this example we have created the general folder
My Servers and have placed two hosts, agent.system.xx.compaq.com and
another.agent.sys.xx.compaq in the folder (Figure 3– 15). To create a new
folder:
1. From the File menu, choose New Folder.
2. Name the new folder in the Navigation window by double-clicking its
label and entering a new name.

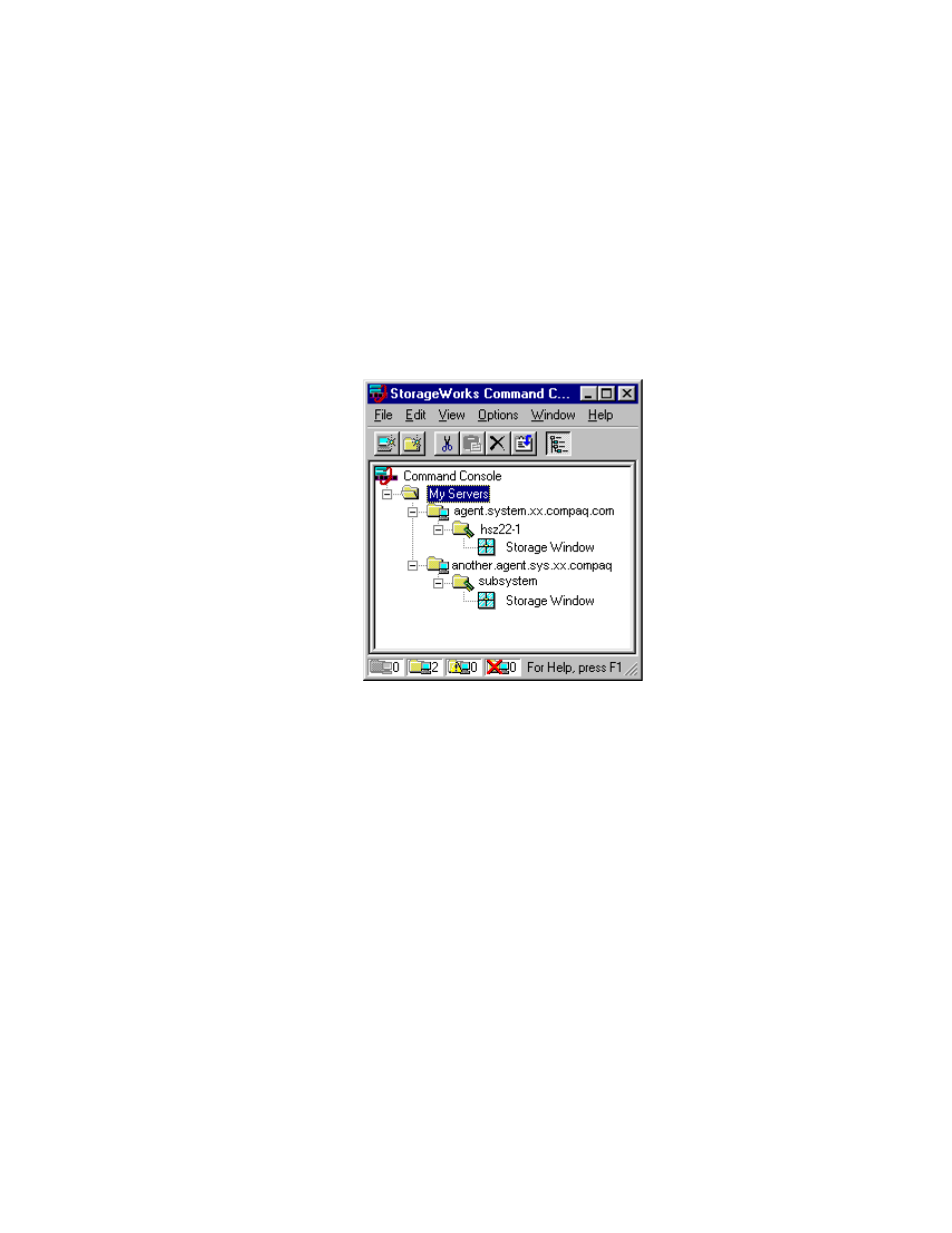

Figure 3-15. Adding a general folder
Renaming a Folder
1. Double-click the folder name in the Navigation Tree.
2. Enter the new name. Only user-created general folders that you create
can be renamed.
