4-12 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models)
Virtual Disk Window
The Virtual Disk Window (Figure 4– 9) provides detailed information about
the virtual disks in the storage subsystem.

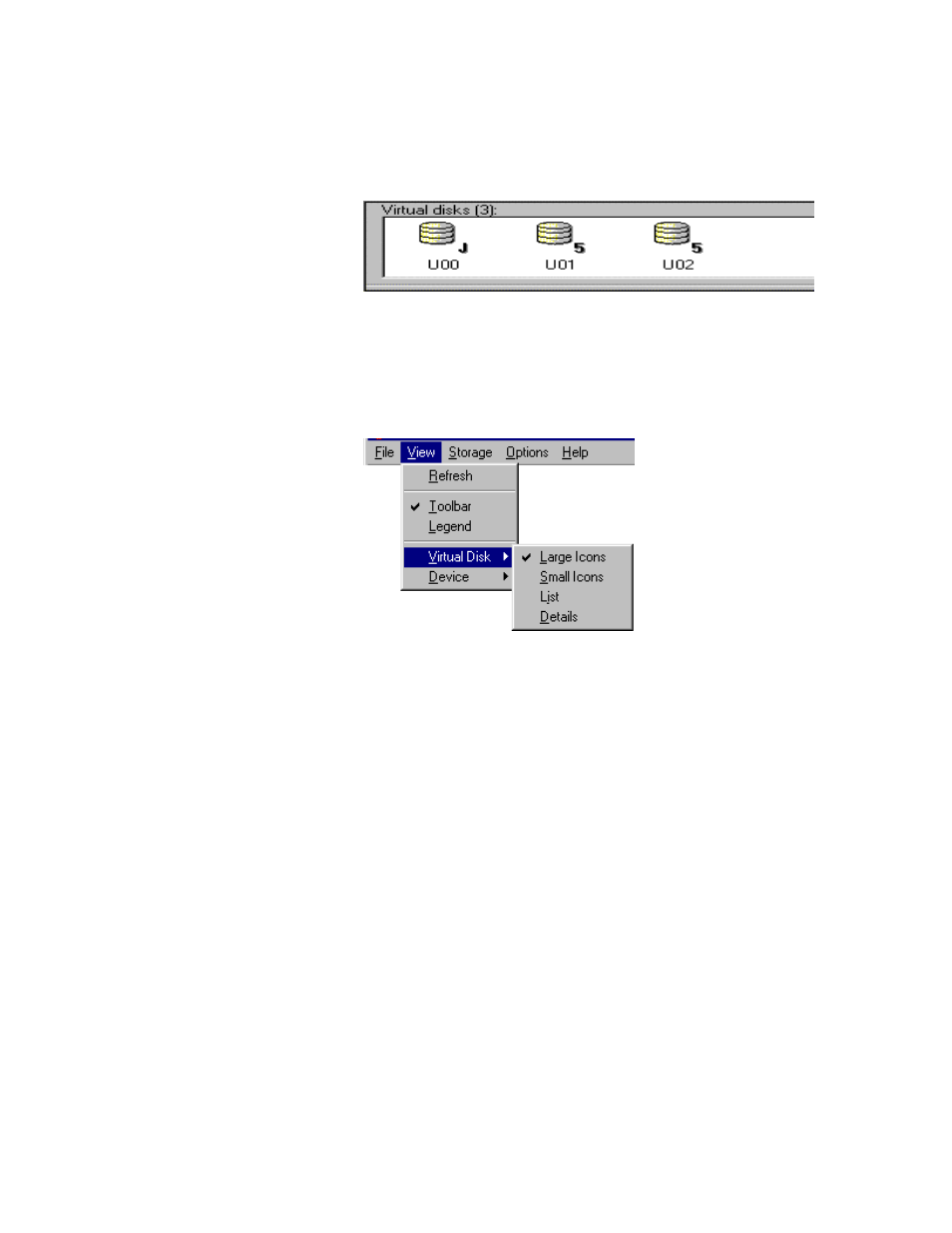

Figure 4-9. Virtual disk window
View Options
You have four options for viewing the information in the Virtual Disk
Window. You can select any one of these options by clicking Virtual Disk in
the View menu (Figure 4– 10).
Figure 4-10. Virtual disk window view options
