Navigation Window Status Bar
The status bar (Figure 4– 5) provides information about the number of systems
currently connected to the Command Console client and the state of those
connections.
The status bar provides colored status indicators to indicate the current state of
system connections. Red indicates a failure and yellow a warning (possible
failure).

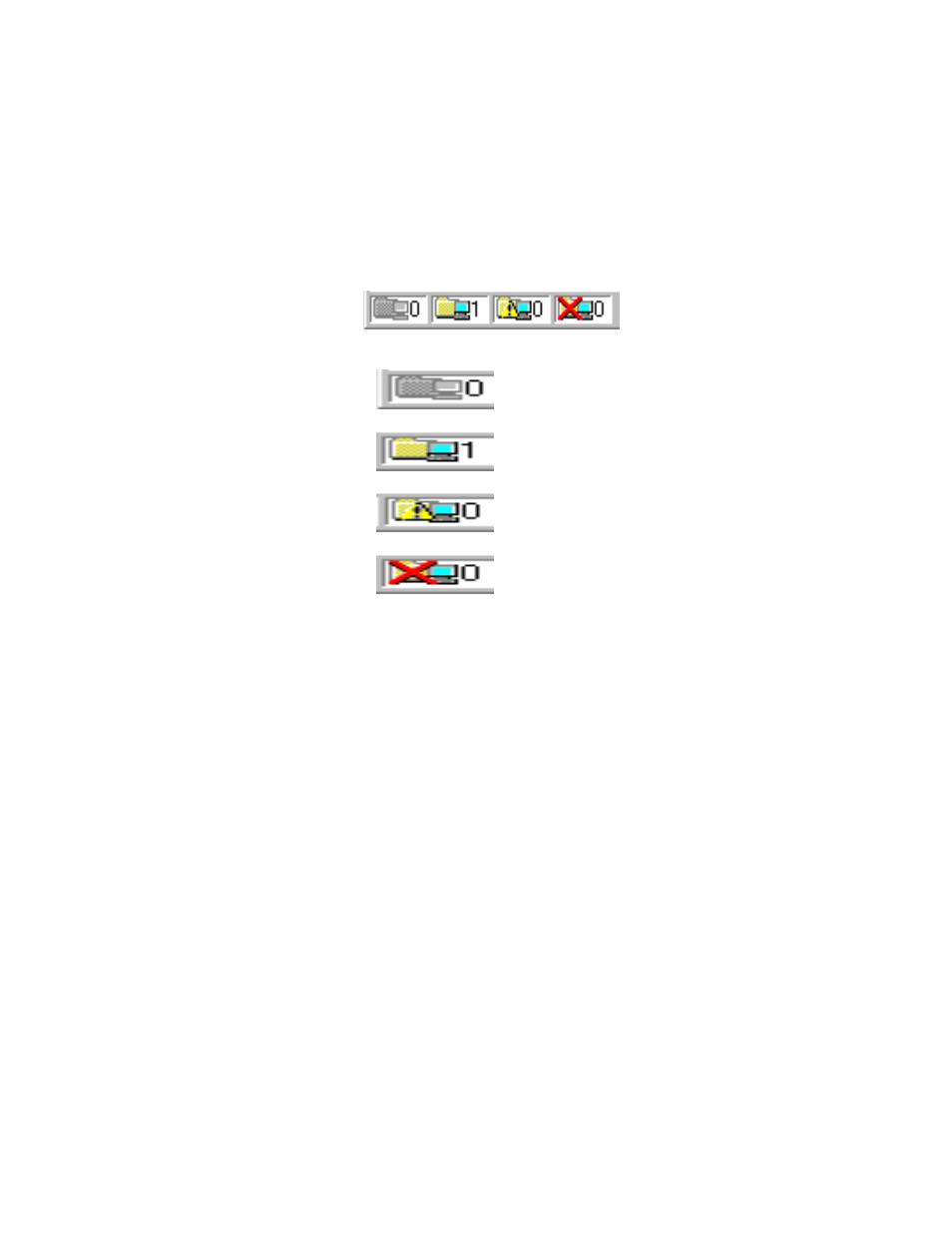

Figure 4-5. Status bar
A grayed out icon indicates the number of
disconnected systems. In this example 0 systems
are disconnected from client.
A full-color icon indicates the number of fully
functional “ good” systems. In this example 1
system is good and online.
A yellow triangle with an exclamation mark
indicates the number of degraded systems. In this
example 0 systems are degraded.
A red X indicates a failed system. In this example
there are 0 failed systems.
