3-6 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: d-ch3 Using Command Console.doc Last Saved On: 12/5/00 10:20 AM
Establishing a Serial Connection, Single Controller
The simplest connection to a storage subsystem is a direct cable connection
from the client’s host system to one of the storage subsystem’s serial ports. To
establish a serial connection, connect a serial cable from one of the computer’s
COM ports to the storage subsystem's CTR TOP (controller in top slot) or
CTR BOTTOM (controller in second slot) configuration port and proceed as
follows:
1. Select HSZ22 Storage window.
2. When the Connection Choice dialog box displays, select the Serial
option, then click OK to display the HSZ22 Management: Serial
Connection dialog box (Figure 3– 4).
3. The drop-down menu, select the computer COM port that your RA3000
is connected to, then click the Connect button to display the Storage
window. When the Storage window displays, you are connected to your
storage subsystem.

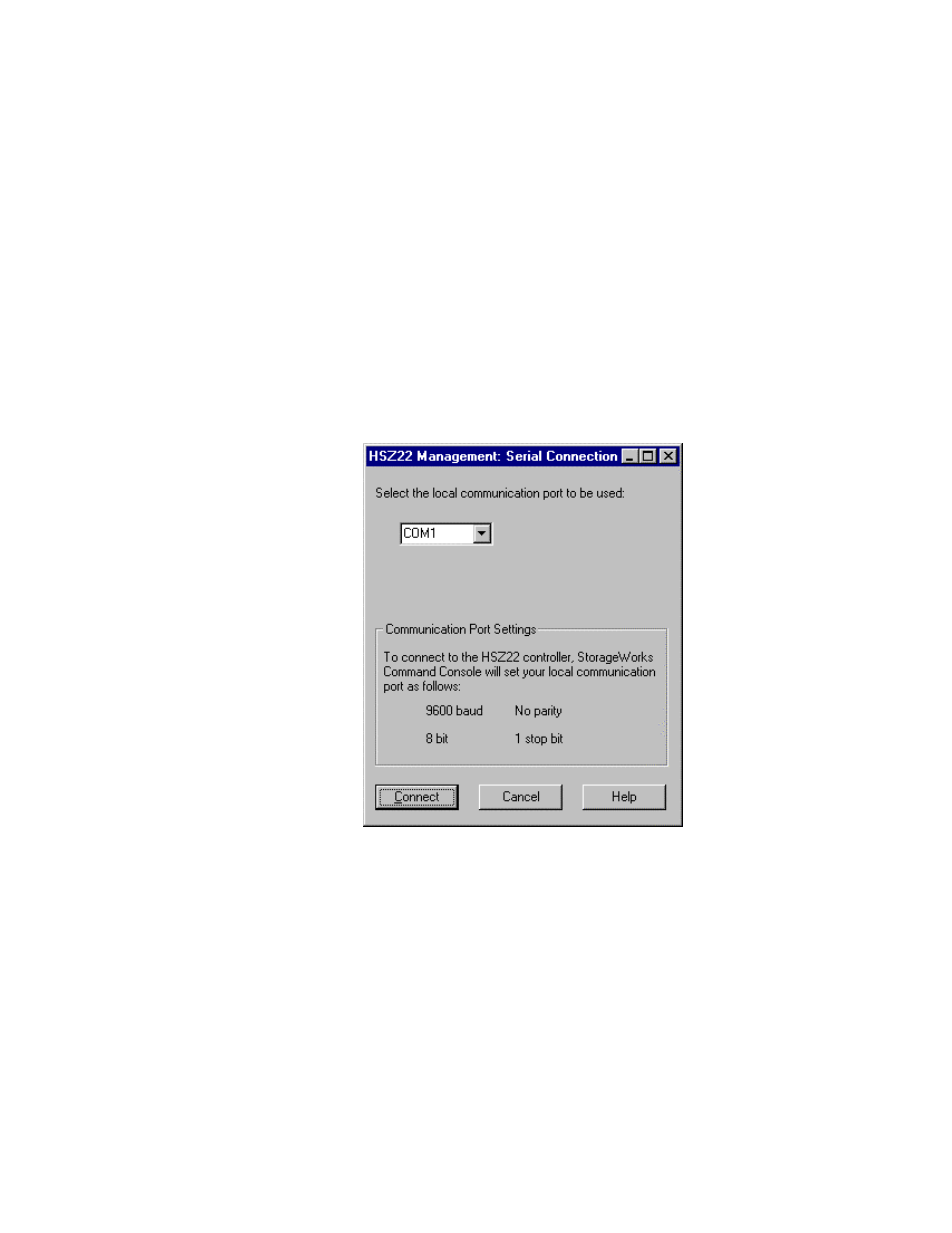

Figure 3-4. HSZ22 Management Serial Connection dialog box for
Storage window
