In the second HSZ22 Management: Serial Connection dialog box, select
the COM port that the second controller (CTR BOTTOM, the redundant
controller) is connected to, then click the Connect button (Figure 3– 6).
Client displays the dual-controller Storage window.

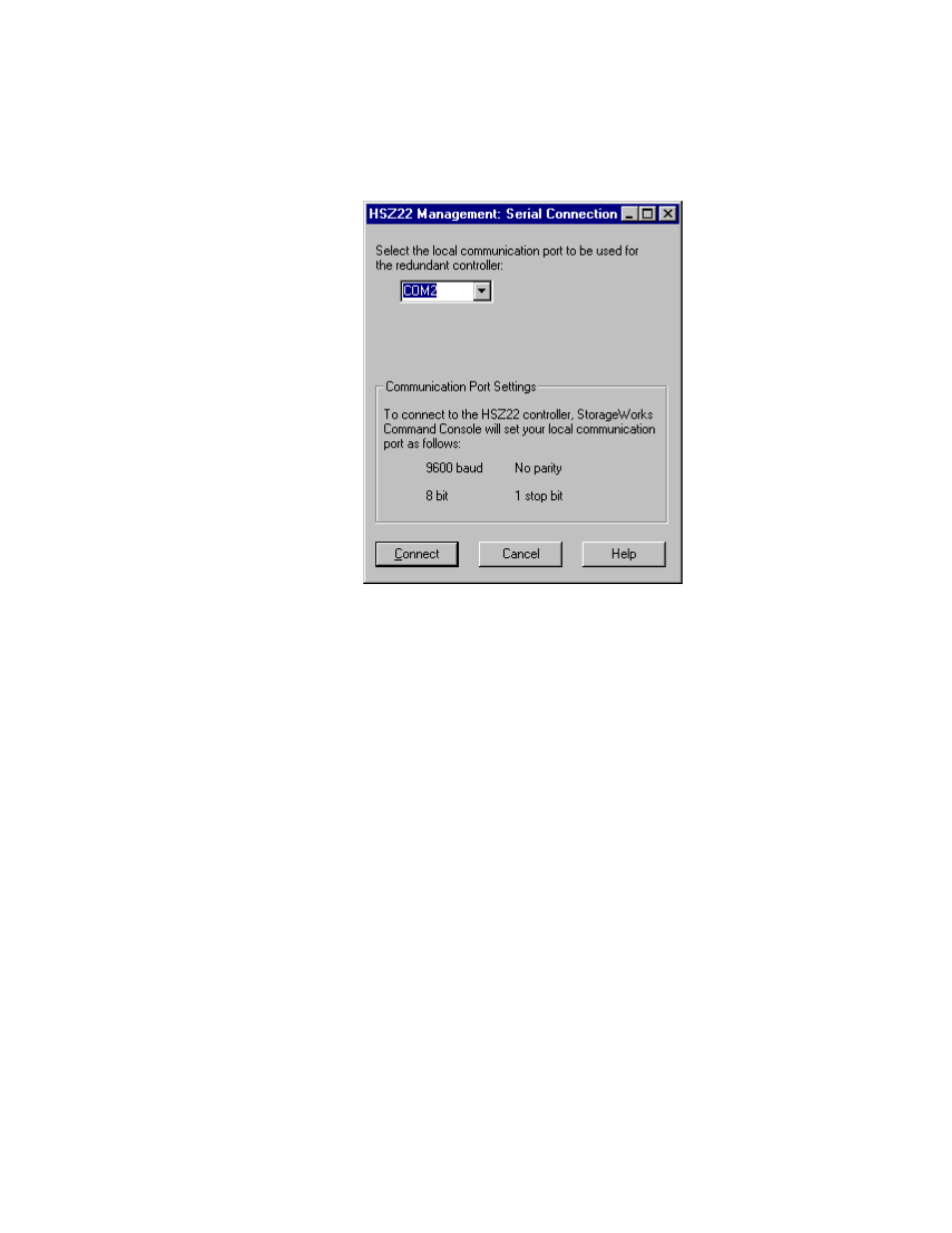

Figure 3-6. Establishing a serial connection to the

second (redundant) controller
