3-4 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: d-ch3 Using Command Console.doc Last Saved On: 12/5/00 10:20 AM
Start Menu Options for Command
Console
Command Console client (Figure 3-1) provides you with two program choices:
HSZ22 Storage window and StorageWorks Command Console. Choosing
HSZ22 Storage window allows you to connect to only one storage subsystem.
Choosing StorageWorks Command Console displays the Navigation window,
which contains the Navigation Tree and set up pager notification. You can use
the Navigation Tree to monitor storage subsystems over a TCP/IP network.

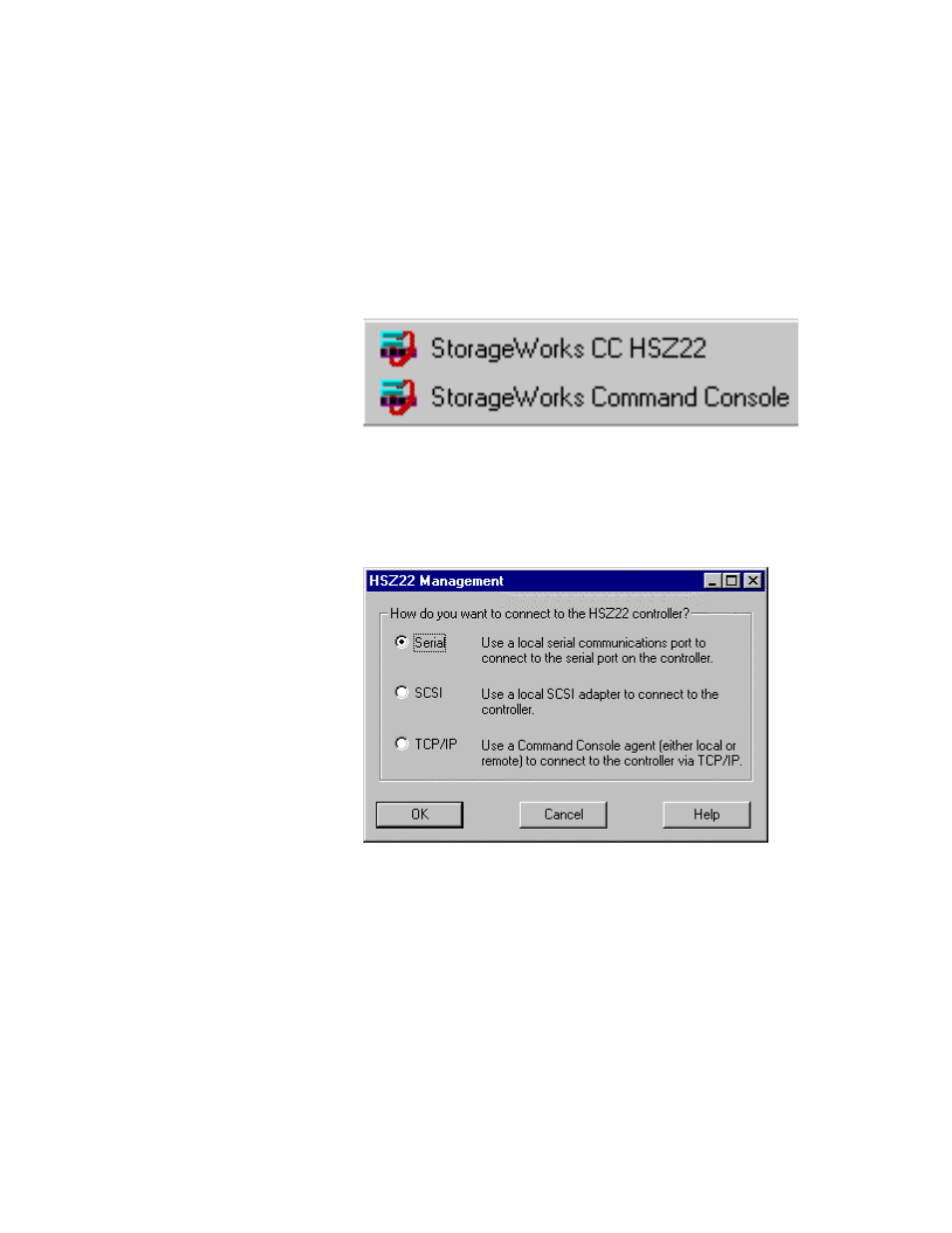

Figure 3-1. Path for Command Console
If you select the HSZ22 Storage window, client displays the How do you want
to connect to the HSZ22 controller? Dialog box (Figure 3– 2). This selection
lets you connect to a storage subsystem by using one of the following
connections: serial, SCSI, or TCP/IP network.
Figure 3-2. Connection choices for connecting to a single storage subsystem
