3-14 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: d-ch3 Using Command Console.doc Last Saved On: 12/5/00 10:20 AM
Creating and Managing a Network of RA3000s
If you select StorageWorks Command Console from the Start menu, Client
displays the Navigation window (Figure 3– 11). The Navigation window is a
navigation tool used to manage and monitor many storage subsystems over a
network. See “ Using the Navigation Window” section in this chapter.

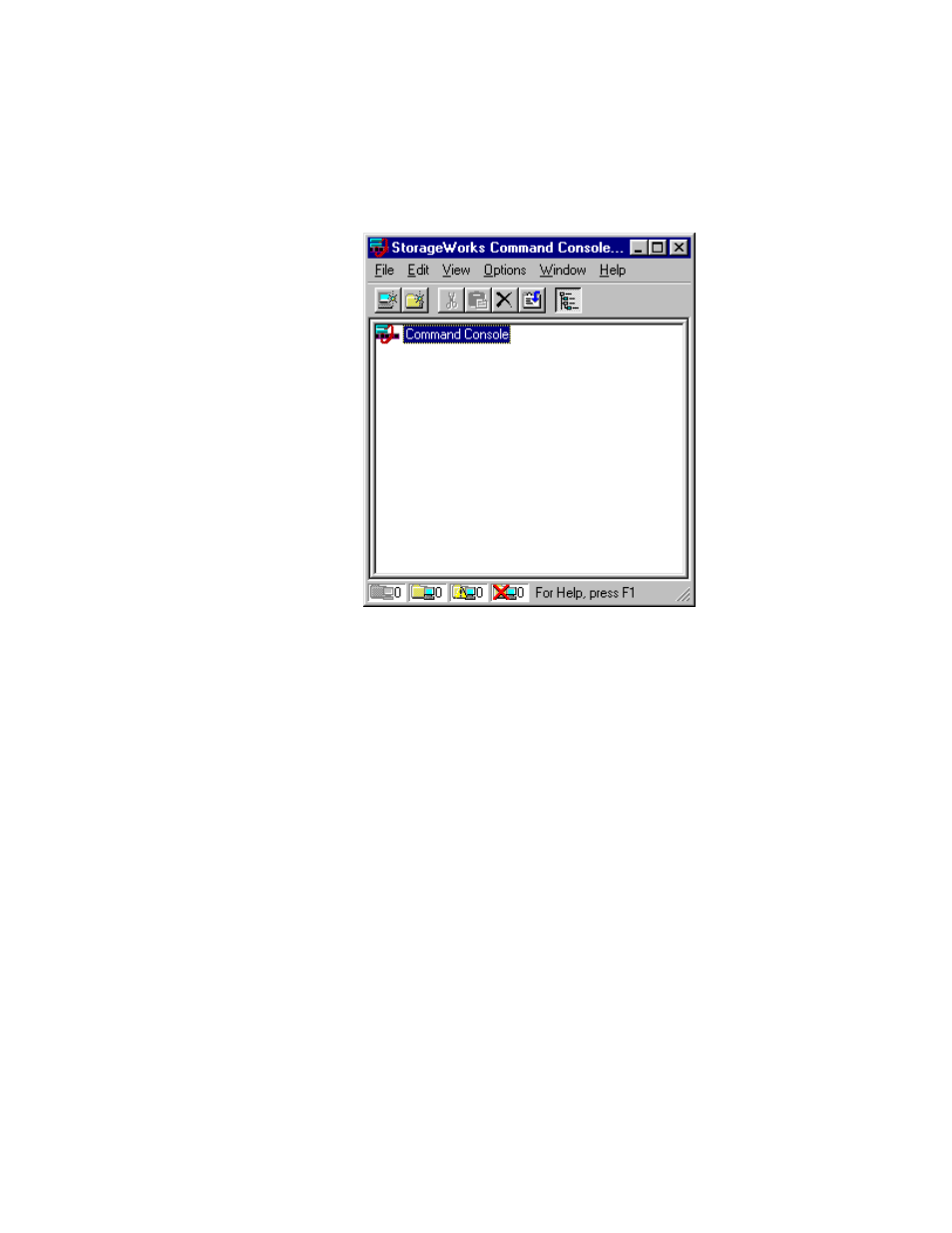

Figure 3-11. Navigation window without the Navigation Tree
