2-12 Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: c-ch2 Installing and Setting Up the Command Client.doc Last Saved On: 12/5/00 10:31 AM
2. Select the devices for your virtual disk by clicking them in the Devices
available to create a new virtual disk windowpane. As you click them,
they are listed in the Details of selected devices windowpane. The
wizard provides helpful information at each step (Figure 2-7). The
wizard tells you that you need to select at least three disks to create a
RAID 5 virtual disk. We have selected the three available devices
located on Channel 0.

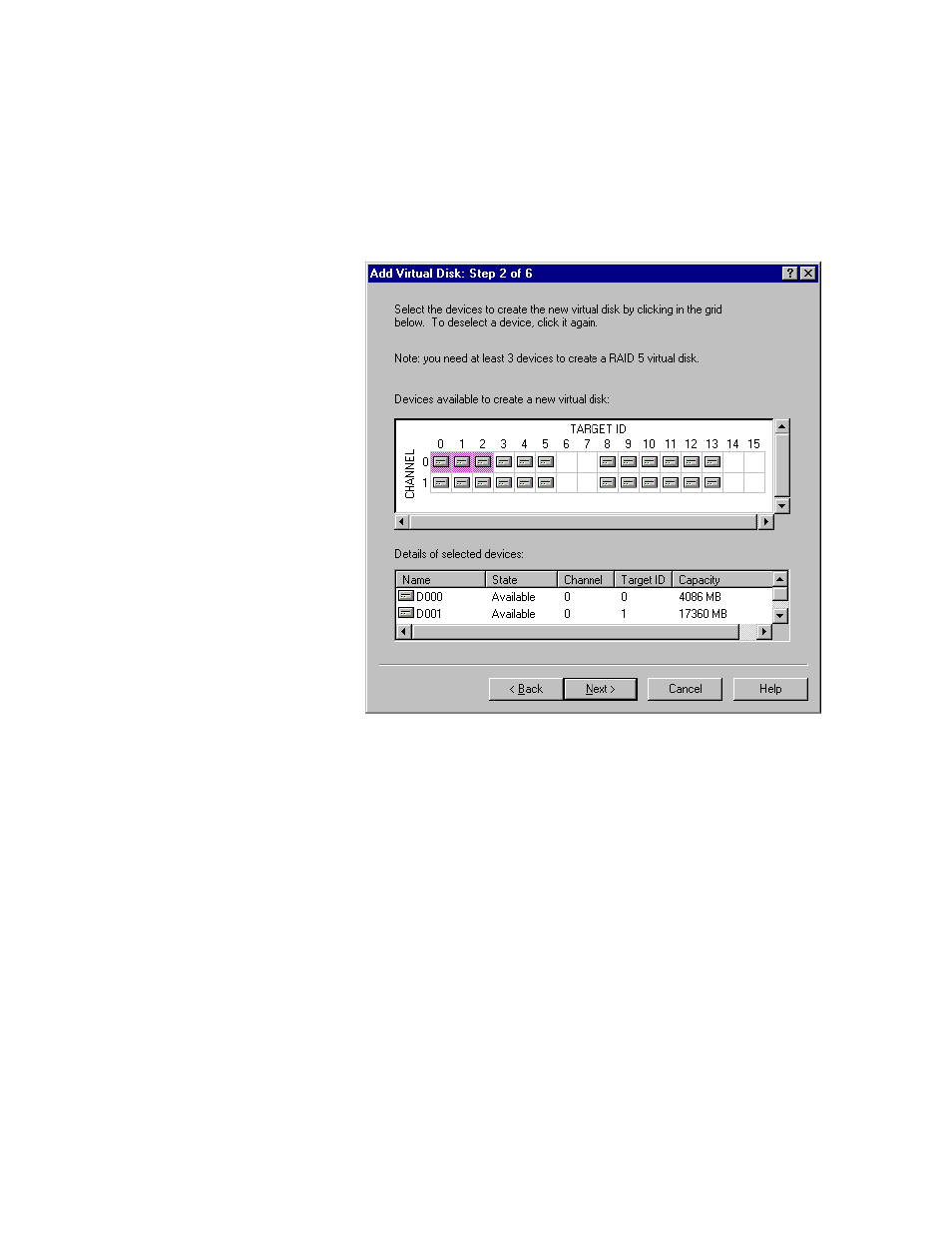

Figure 2-7. Virtual disk wizard step 2 (rack mount model)
