Command Console Client’s Windows, Menus, and Tools 4-17

Compaq Confidential – Need to Know Required

Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) Comments:

Part Number: AA-RBF2C-TE File Name: e-ch4 Command Console Client’s Windows, Menus and Tools.doc Last Saved On: 12/4/00 12:11 PM

The Membership sheet (Figure 4– 14) shows which virtual disk the device is
part of. In this example the device belongs to virtual disk U02 which is
currently operating in a reduced state.

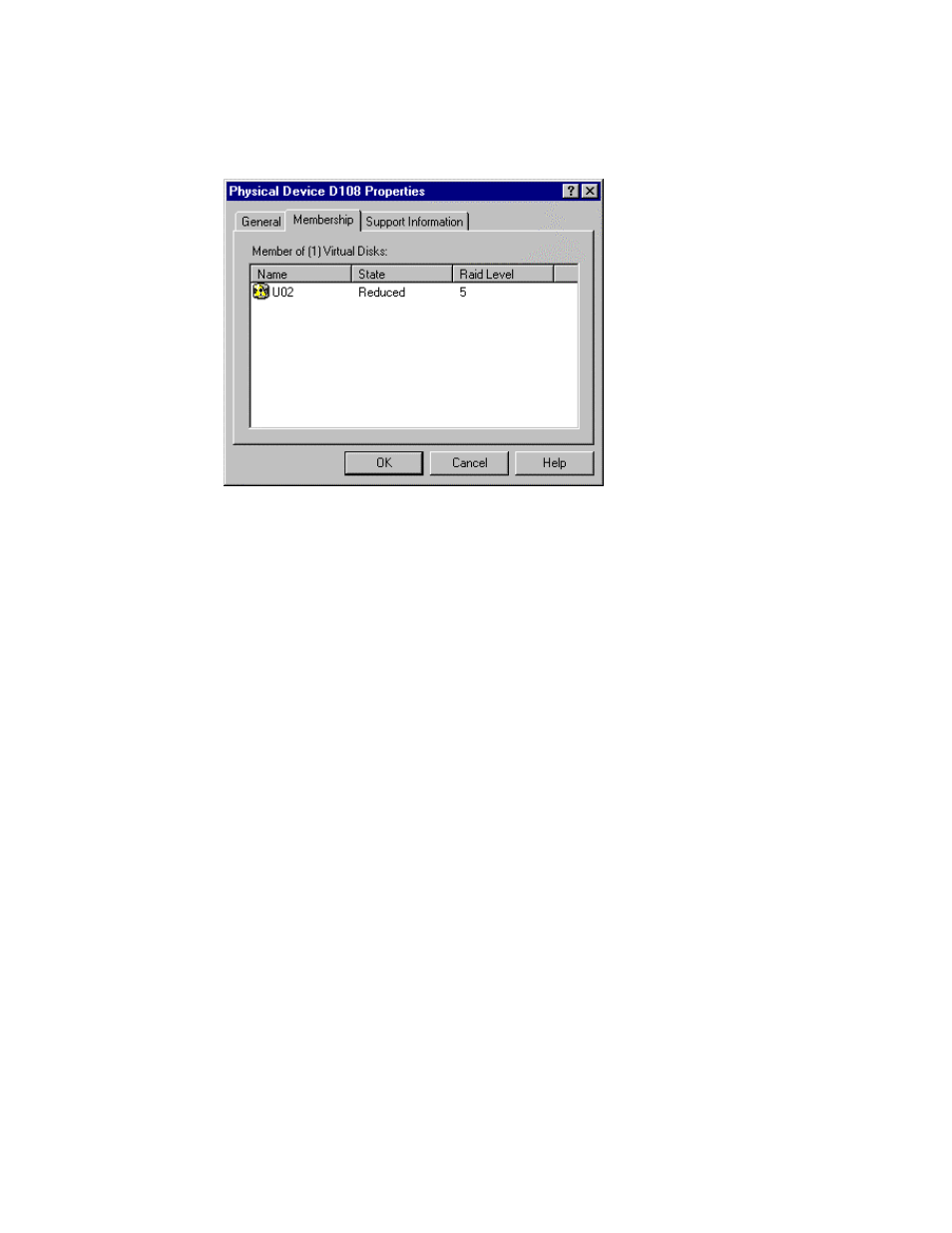

Figure 4-14. Device membership property sheet
