Installing and Setting Up the Command Console Client 2-9
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: Command Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount Models) User’s Guide Comments:
Part Number: AA-RBF2C-TE File Name: c-ch2 Installing and Setting Up the Command Client.doc Last Saved On: 12/5/00 10:31 AM
3. On the next dialog box (Figure 2– 5), select the COM port that the
second (redundant) controller (CTR BOTTOM, the redundant
controller) is connected to, and then click the Connect button. Client
displays the dual-controller Storage Window.

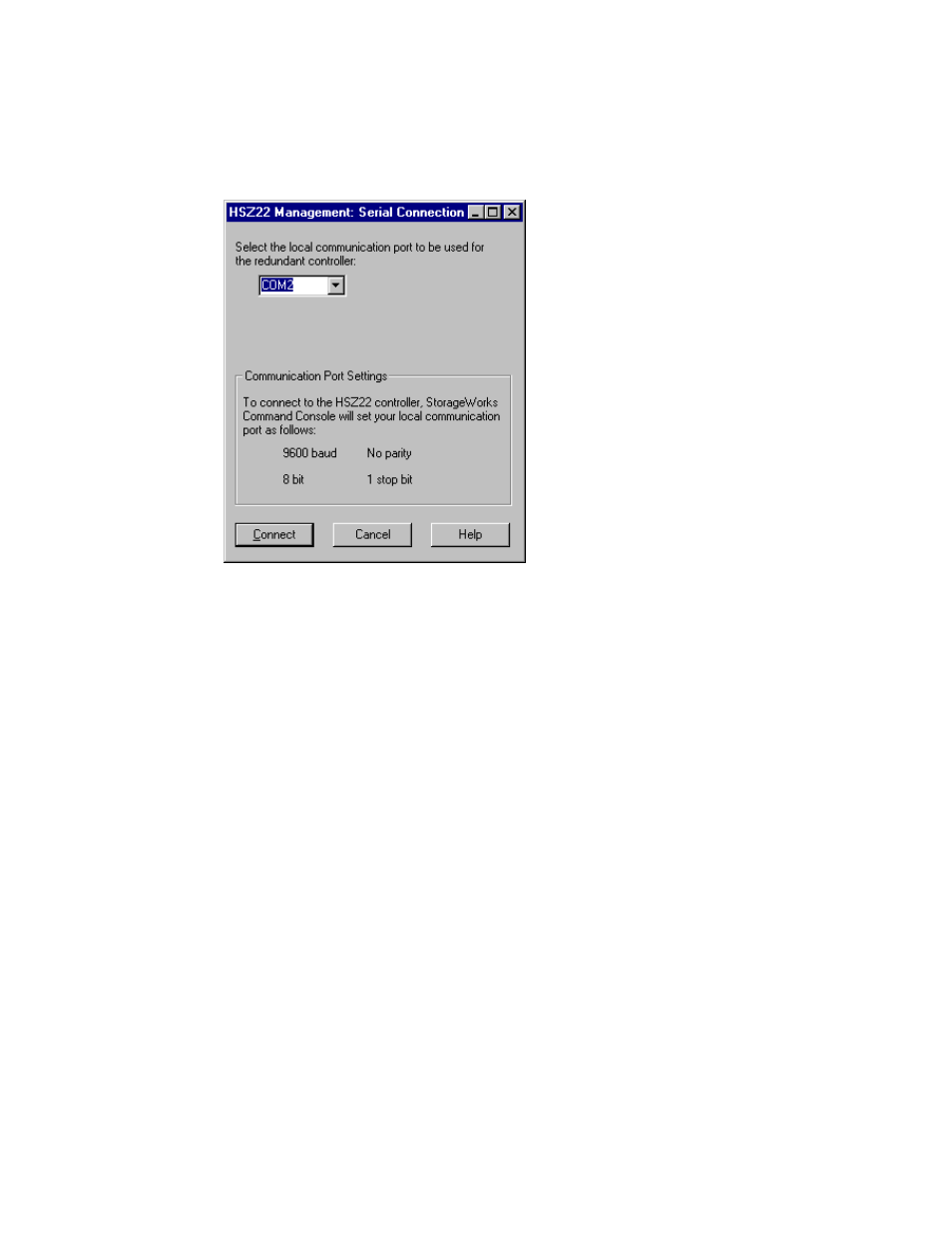

Figure 2-5. Establishing a connection to the second (redundant) controller
