Establishing a Serial Connection, Dual Controller
1. Perform steps 1 and 2 in the previous section, “ Establishing a Serial
Connection, Single Controller.”
2. When Client displays the next dialog box (Figure 2– 4), select the
computer’s COM port that the top controller (CTR TOP) is connected
to, then click the Connect button.

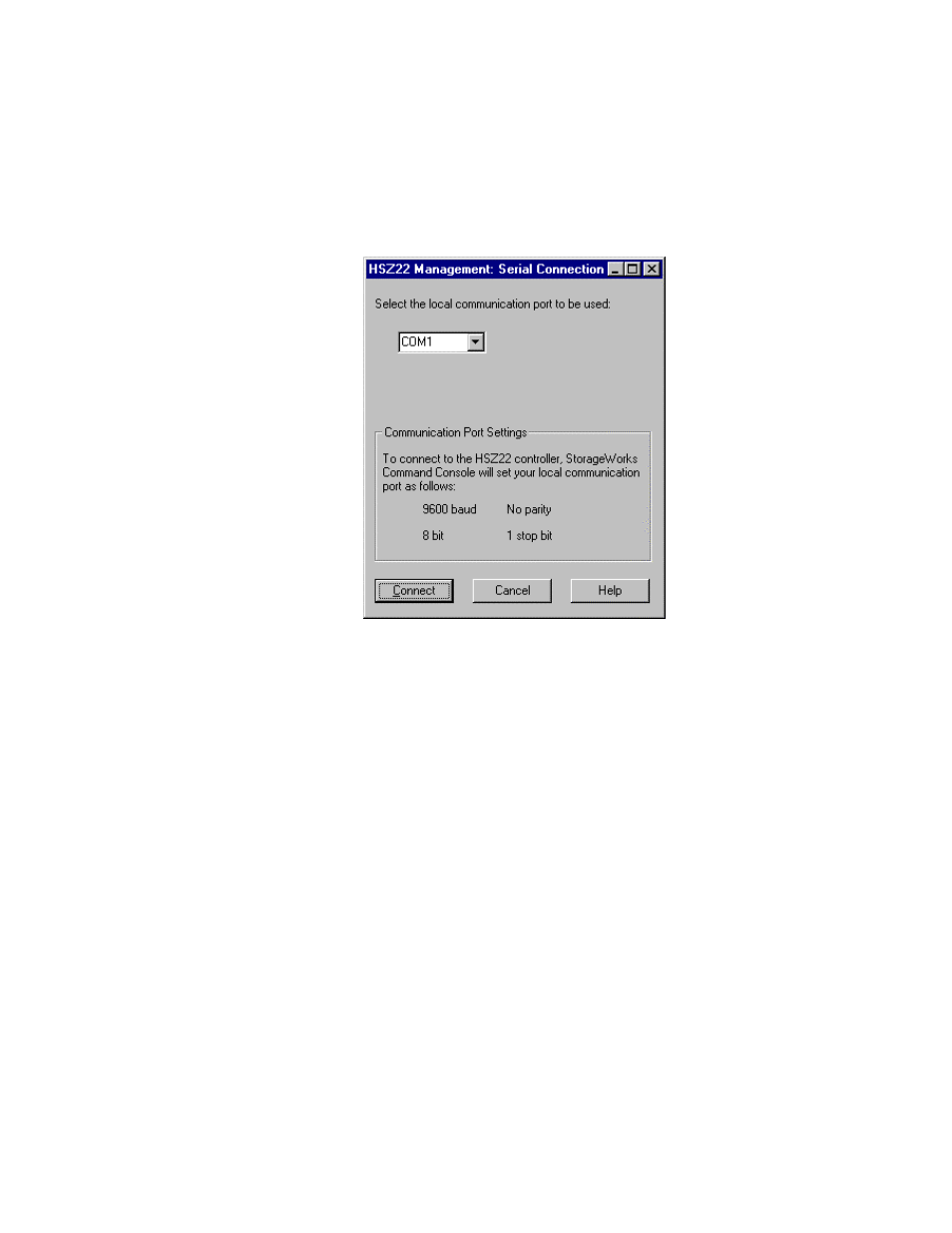

Figure 2-4. Establishing a connection to the top controller
