Navigation Window Toolbar
The Navigation Window toolbar (Figure 4– 4) is located directly under the
menu bar and provides buttons to activate some of the frequently used
Command console functions. To display or hide the toolbar, you can toggle the
toolbar option on the View menu.

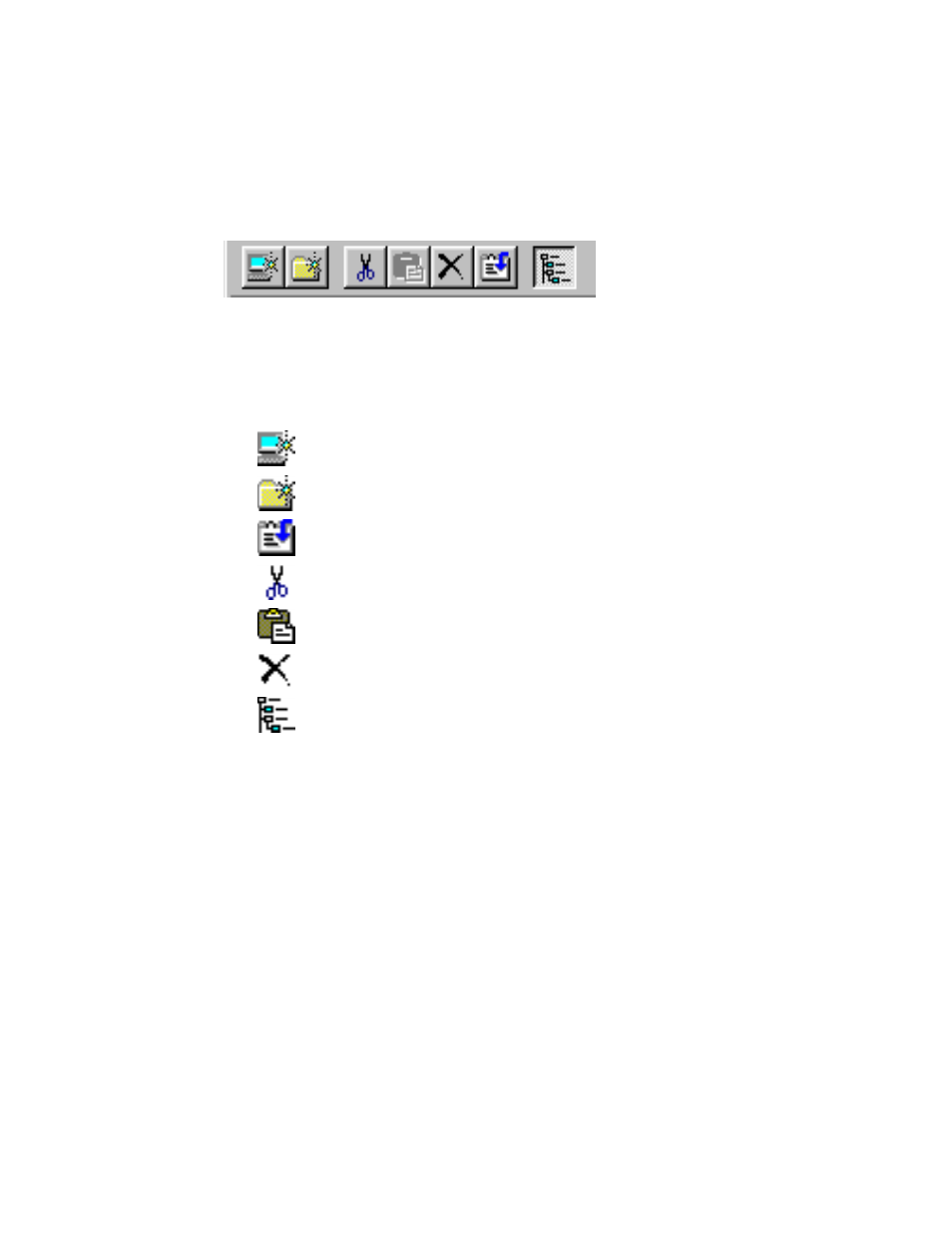

Figure 4-4. Toolbar
Navigation Window Toolbar Buttons
Frequently used Navigation Window functions can be accessed by clicking a
button on the Navigation Tree toolbar. The toolbar buttons are the following:
Add System
Add new Folder
View system properties
Cut folder
Paste folder
Delete folder
View Navigation Tree
