2. Click the Host Ports tab to display the host port property sheet
(Figure 3– 21).

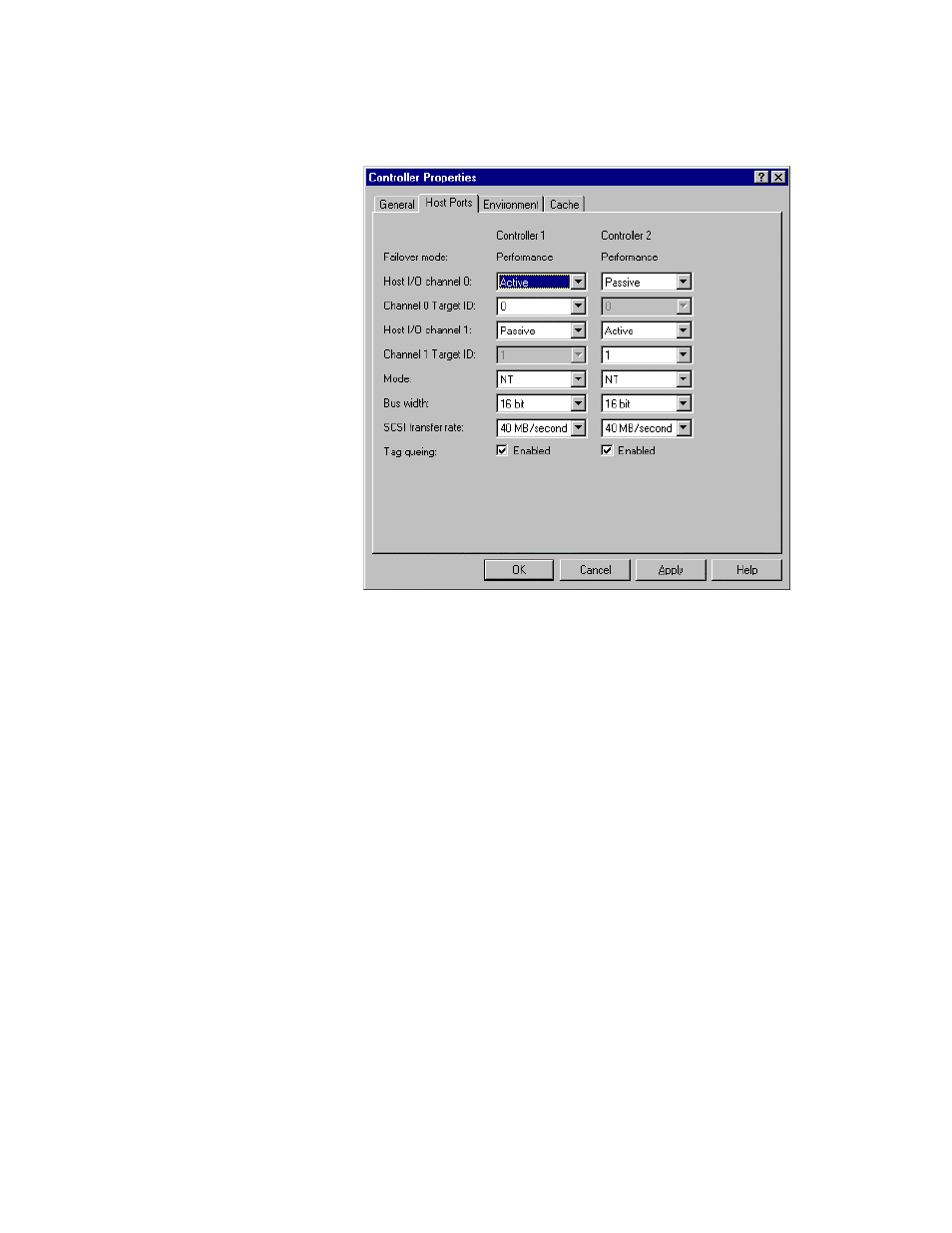

Figure 3-21. Host ports default settings for dual-controller Windows
3. Set host I/O channel 0 for controller 1 to active.
4. Set host I/O channel 1 for controller 1 to passive.
2. Set the channel 0 target ID for controller 1.
3. Set the channel 1 target ID for controller 2.
4. Set the mode for both controllers to NT.
5. To apply the changes on the Host Ports property sheet, Command
Console restarts the controllers. Make sure that the host ports are
quiescent, then click OK.
NOTE: In Active/Active mode, the system is configured to control one SCSI host port on
each controller. To utilize both controllers, each SCSI port must connect to a host bus
adapter. The two adapters can be in one host system or in two different host systems.
