Creating a Virtual Disk by Using a Serial
Connection
Command Console Client can create a number of different RAID levels on
your RA3000. You can create:
■ Single-device virtual disks Just a Bunch of Drives (JBODs)
■ Striped virtual disks (RAID 0)
■ Mirrored virtual disks (RAID 1)
■ Striped mirrored virtual disks (RAID 0+1)s
■ Striped parity virtual disks with fixed parity disk (RAID 4)
■ Striped parity virtual disks with floating parity disk (RAID 5)
Virtual disks are created using command console client’s Add Virtual Disk
Wizard.
NOTE: If you want to utilize both controllers in the subsystem, they must be configured
for active/active mode. See “ Configuring a Dual-Controller System ”
in Chapter 3 “ Using Command Console ” .
Starting the Wizard:
Access the subsystem’s storage window. Select Add Virtual Disk from the
Storage menu to start the Virtual Disk Wizard.

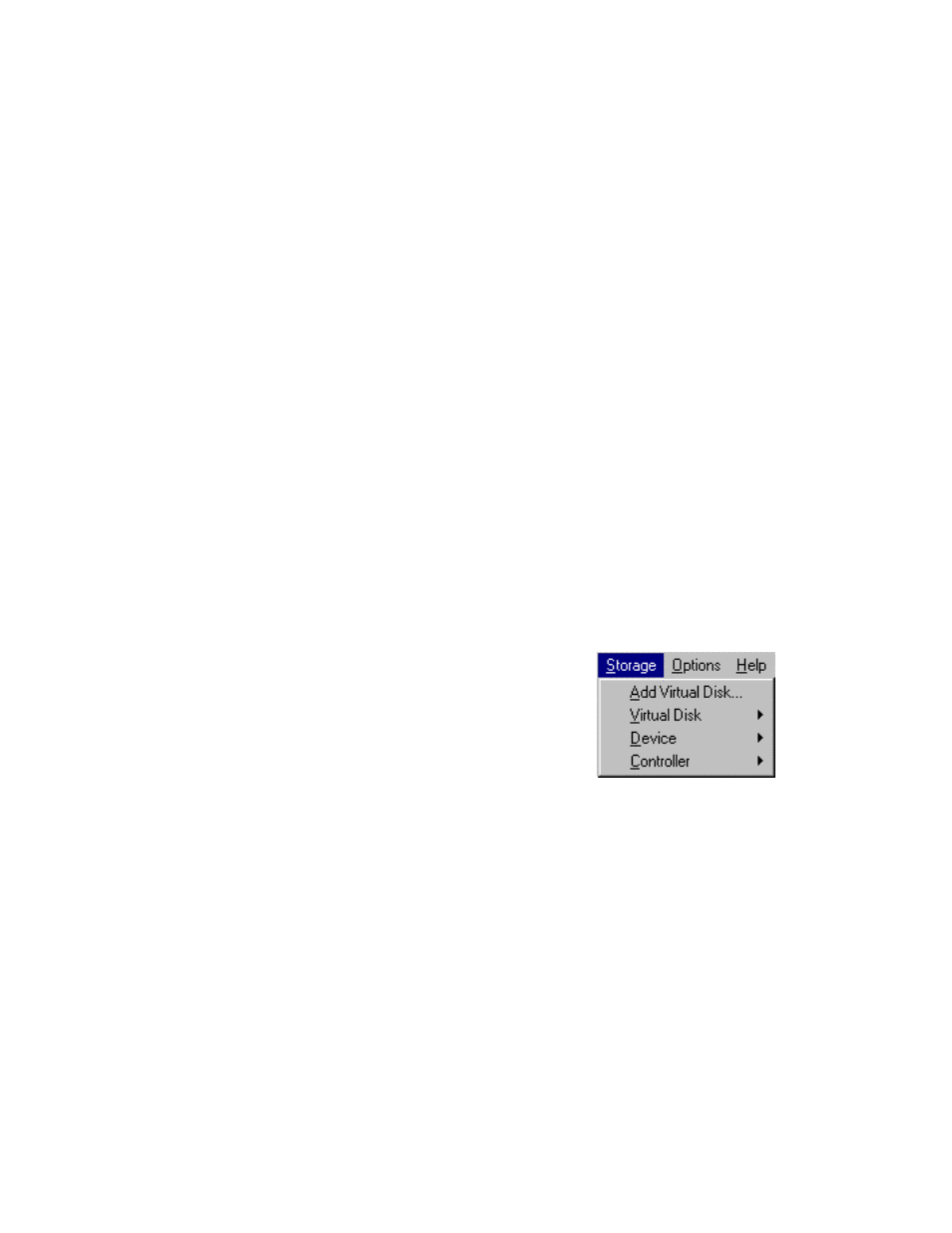

To start the Virtual Disk
Wizard, Access the subsystem’s
Storage Window, and select
Add Virtual Disk from the
Storage menu.
