2.

Right-click the DPM group node.

3.

Select New. The Create DPM Group wizard opens to the DPM Group parameters screen.

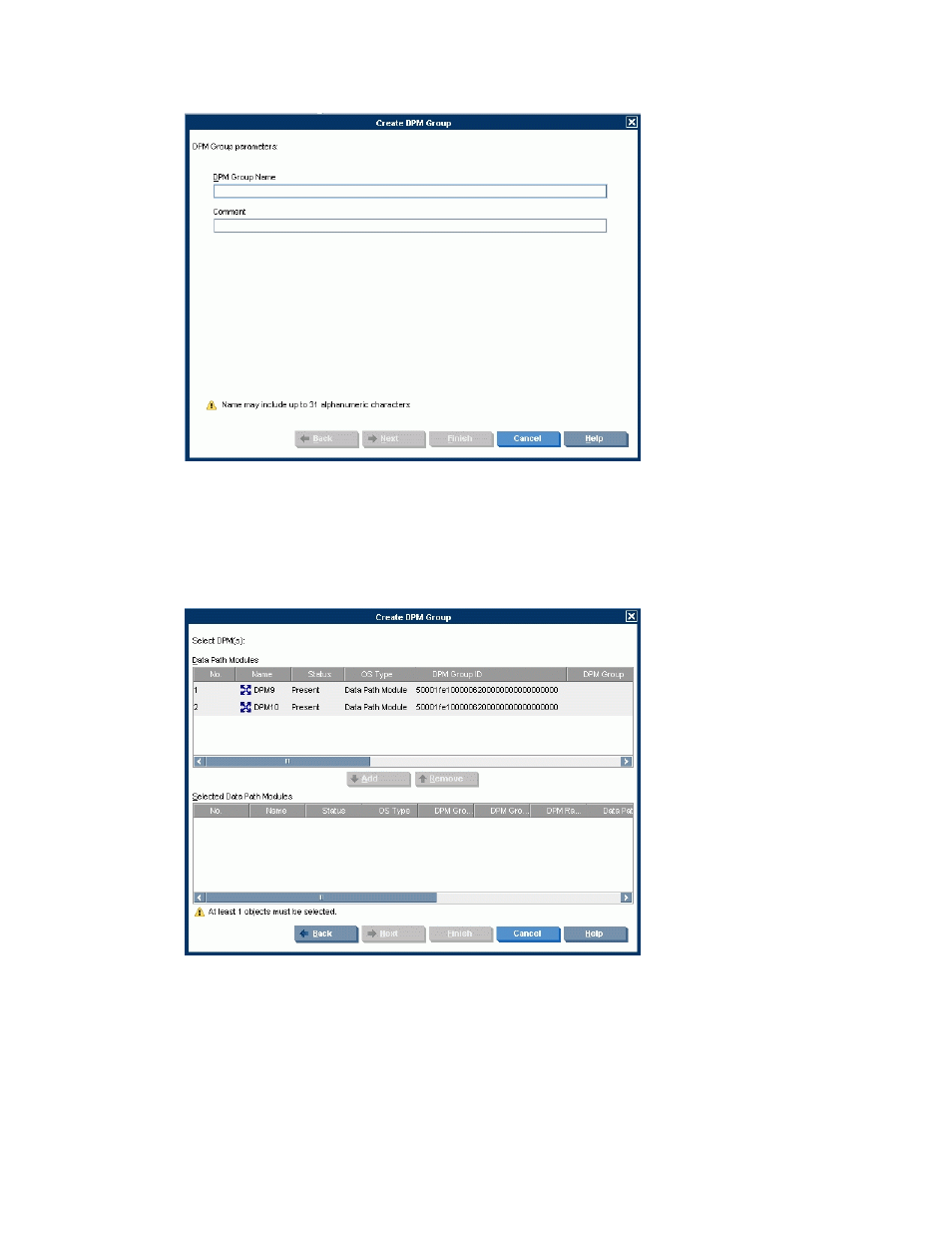

Figure 37 Create DPM Group wizard—DPM Group parameters screen

.

4.

In the DPM Name field, enter a unique name for the DPM group.

5.

In the Comment filed, optionally enter text. You can use this field for a purpose of your choice.

6.

Click Next. The Select DPM(s) screen appears. The upper area of the screen displays the available
DPMs.

Figure 38 Create DPM Group wizard—Select DPM(s) screen

.

7.

Select a DPM and click Add. The DPM you selected is displayed in the lower area of the screen.
Repeat this to add a second DPM to the DPM group.

8.

Click Next. A confirmation screen appears.

9.

Click Finish. The new DPM group is created and is displayed in the DPM groups list.
