3. Press Enter to activate the 1/X math function.

The results begin immediately.

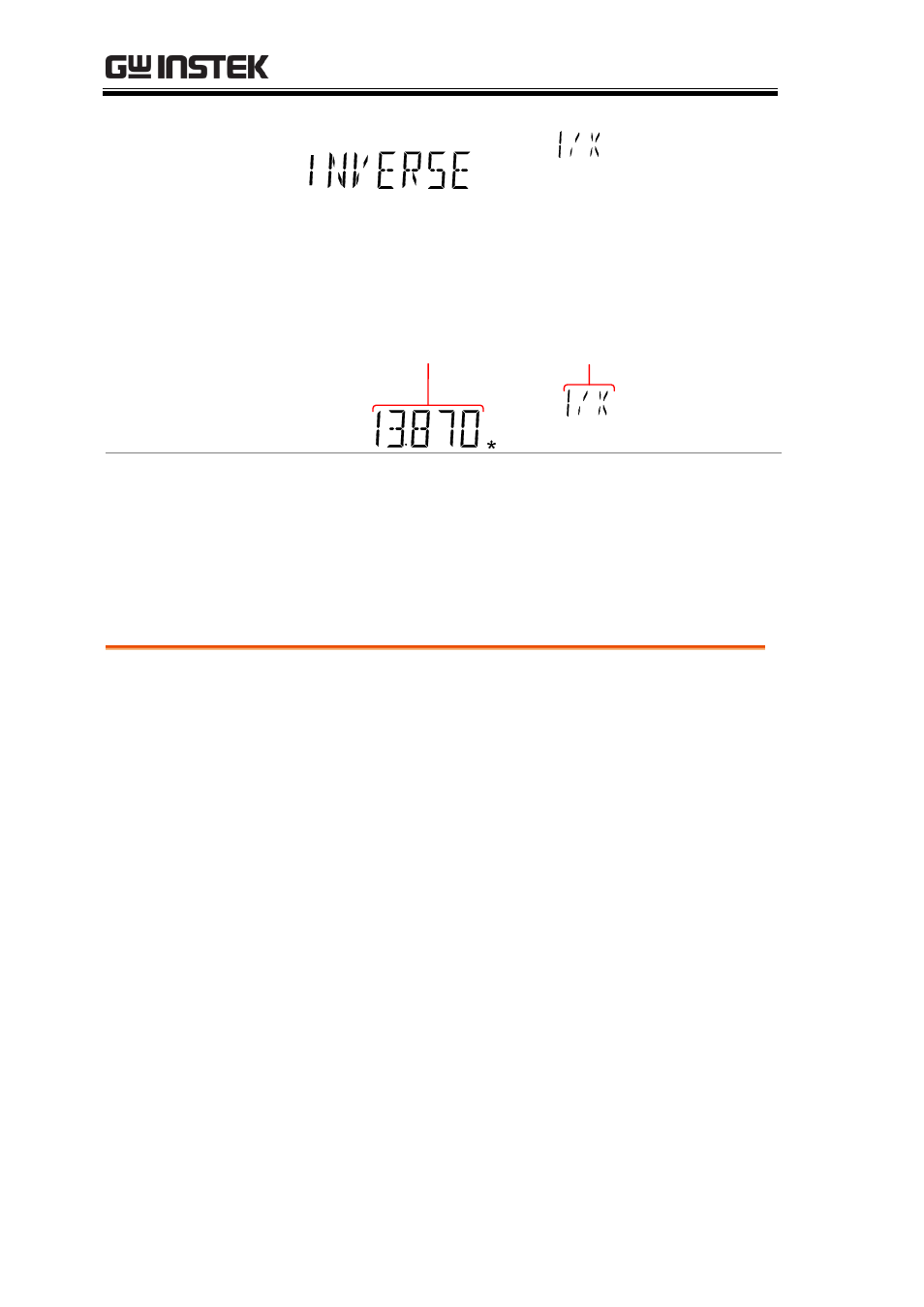

Display

S

AC

V

S

AUTO

MATH

1/X

measurement

1/X math

indicator

Deactivate Math
Measurement

Press the SHIFT → MX/MN to deactivate the
MATH function, or simply activate another
measurement function.

Measure Percentage

Procedure

1. Press SHIFT → MX/MN to enter the MATH

menu.

2. The MX+B setting appears. Press the Up key to

skip past MX+B settings and go to the REF%
settings.

REF% will be flashing in the secondary display.

3. Use the Left and Right arrow keys to navigate

to the digit to be edited or to select the decimal
point.

Use the Up and Down arrow keys to edit the
selected digit or to place the position of the
decimal point.
