Replacing the Input Fuse

Fuse Rating

Type

Rating

T0.5A

0.5A 250V

Note

Only replace the fuse with a fuse of the correct type
and rating.

Steps

1. Turn the DMM off.

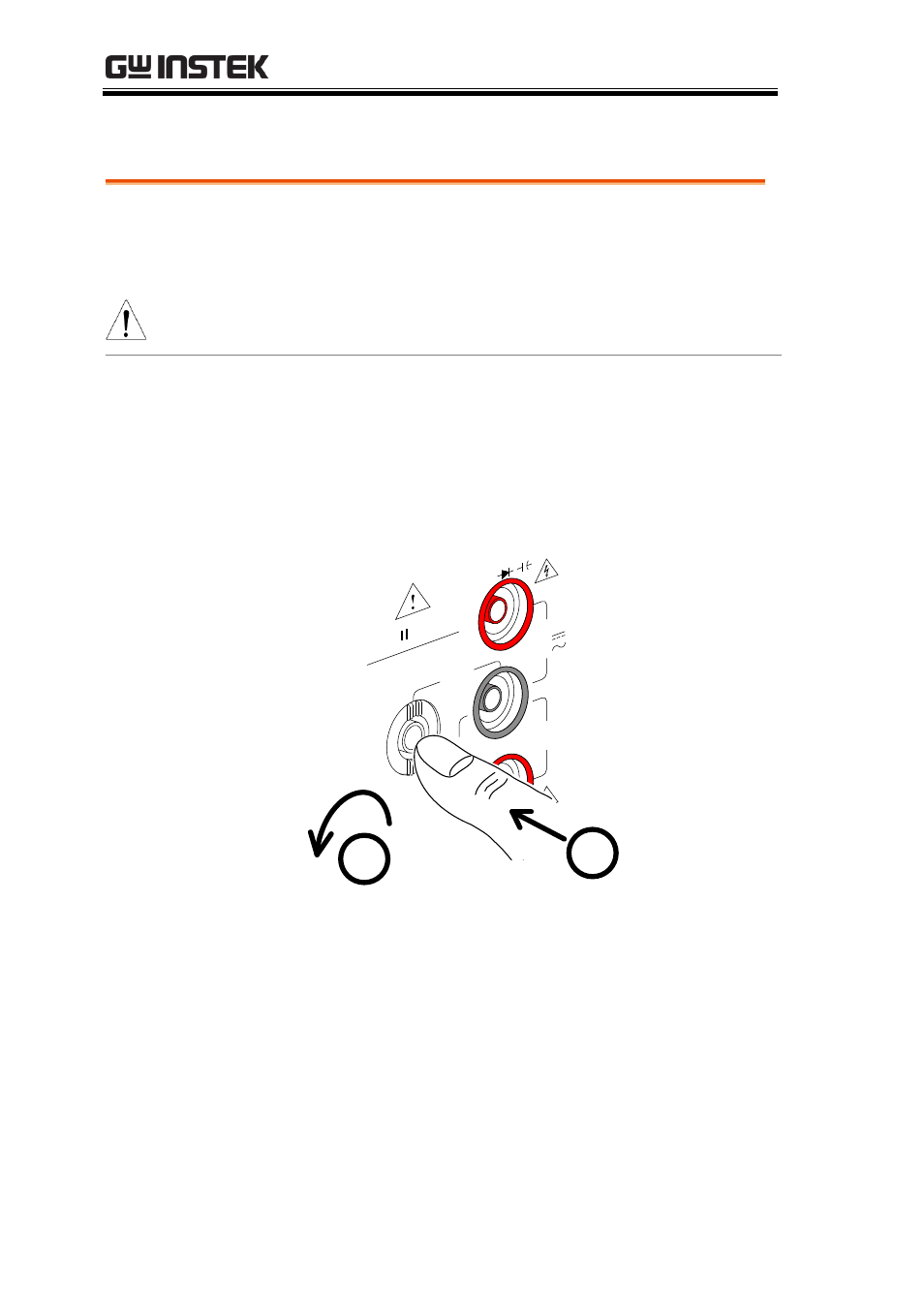

2. Press the fuse holder with your finger and turn

anticlockwise. This will release the fuse holder
from the panel.
