GDM-834X Series User Manual
36

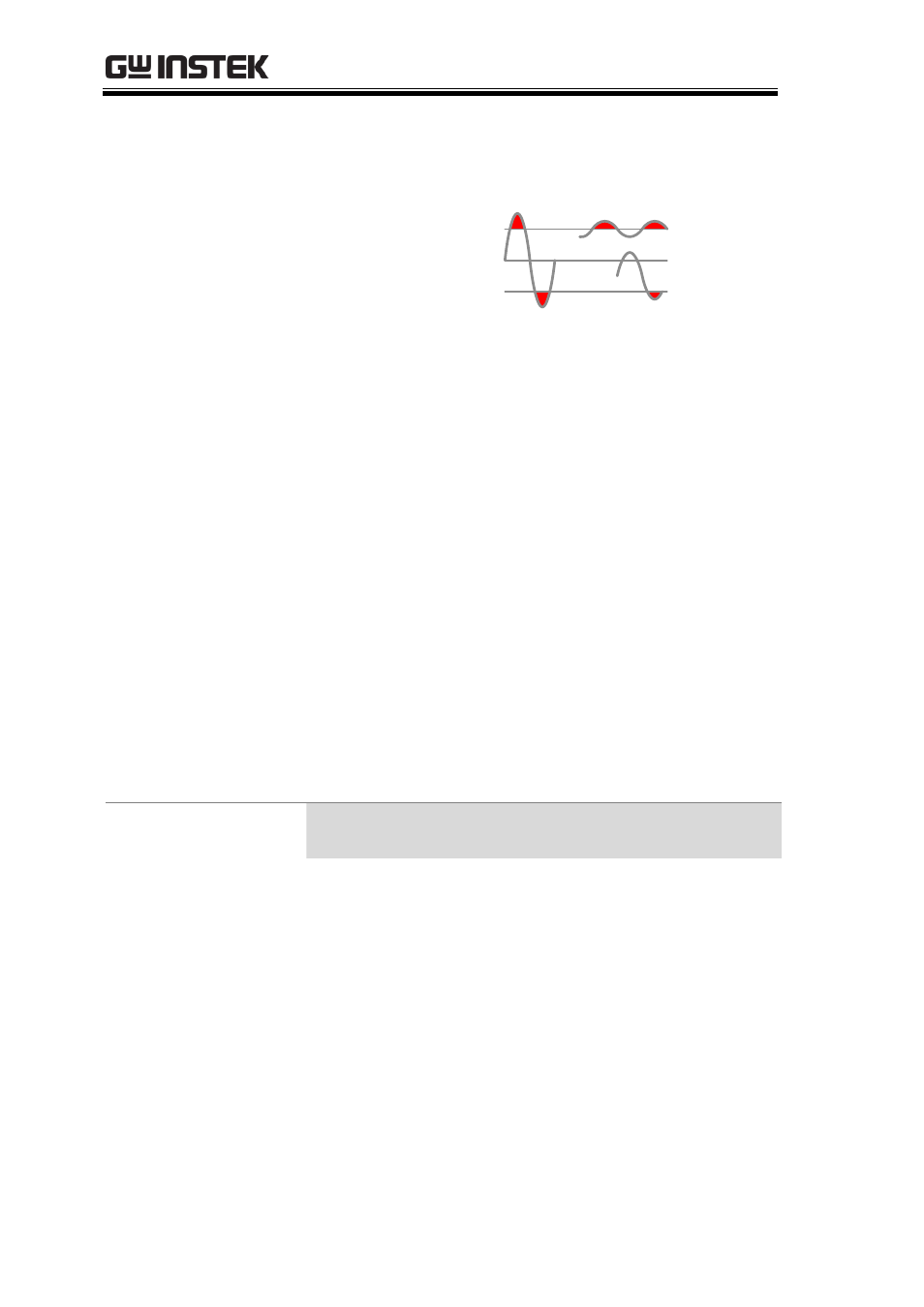

For example:
A
+5V
0V
-5V
C D
B
E
DC 5V Range
A,B: Input exceeds the ADC dynamic range.
C,D: The DCV offset causes the input to exceed the
upper ADC dynamic range.
E: The DCV offset causes the input to exceed the
lower ADC dynamic range.
The DC voltage range should be manually selected
when any of the following conditions are true:
 When DCV measurement is used.
 When the signals being measured contain both
DC and AC components.
 When the amplitude of the AC component in
the measured signal is higher or lower than the
dynamic range of the range being currently
selected by the auto-range function.
Maximum DCV
Dynamic Range Selected DCV Range ADC Dynamic Range
DC 500mV max±100mV
DC 5V max±1V
DC 50V max±10V
DC 500V max±100V
DC 1000V max±1000V
