OPERATION
43
Resistance Measurement
Set to Ω
Measurement 1. Press the Ω/ key to activate resistance
measurement.
Note: pressing the Ω/ key twice will activate
continuity measurement instead.
2. The mode will switch to resistance mode
immediately, as shown below.

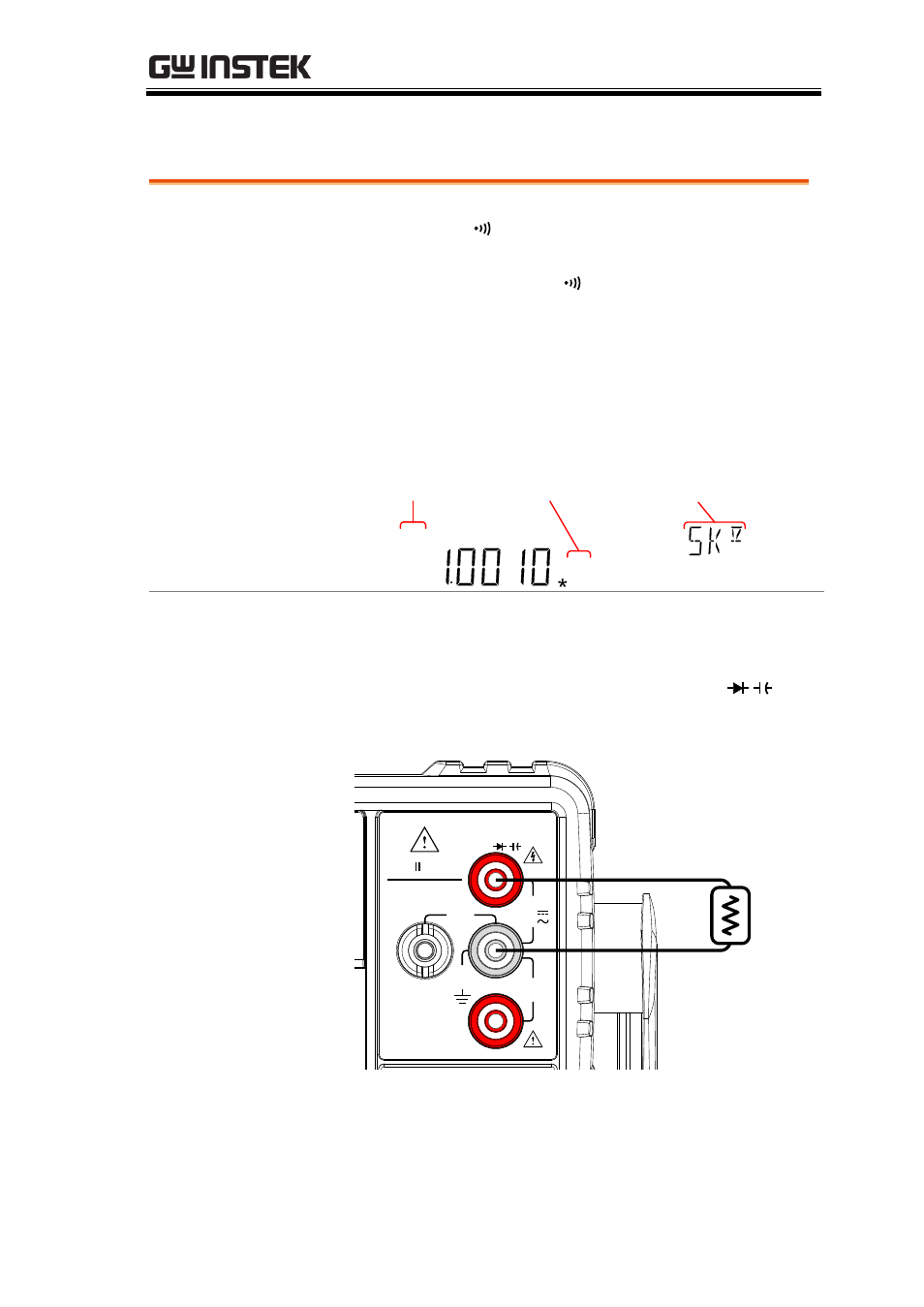

Display
W
S 2W
k
AUTO
Resistance
indicator
Resistance
units
Measurement
range
Connection The GDM-8342/8341 uses 2-wire resistance
measurement.
Connect the test leads between the VΩ
terminal and the COM terminal.
CAT 600V
COM
250V
W V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
