REMOTE CONTROL

103

6. Press Enter to confirm the baud rate settings.

7. Press EXIT to exit from the USB menu.

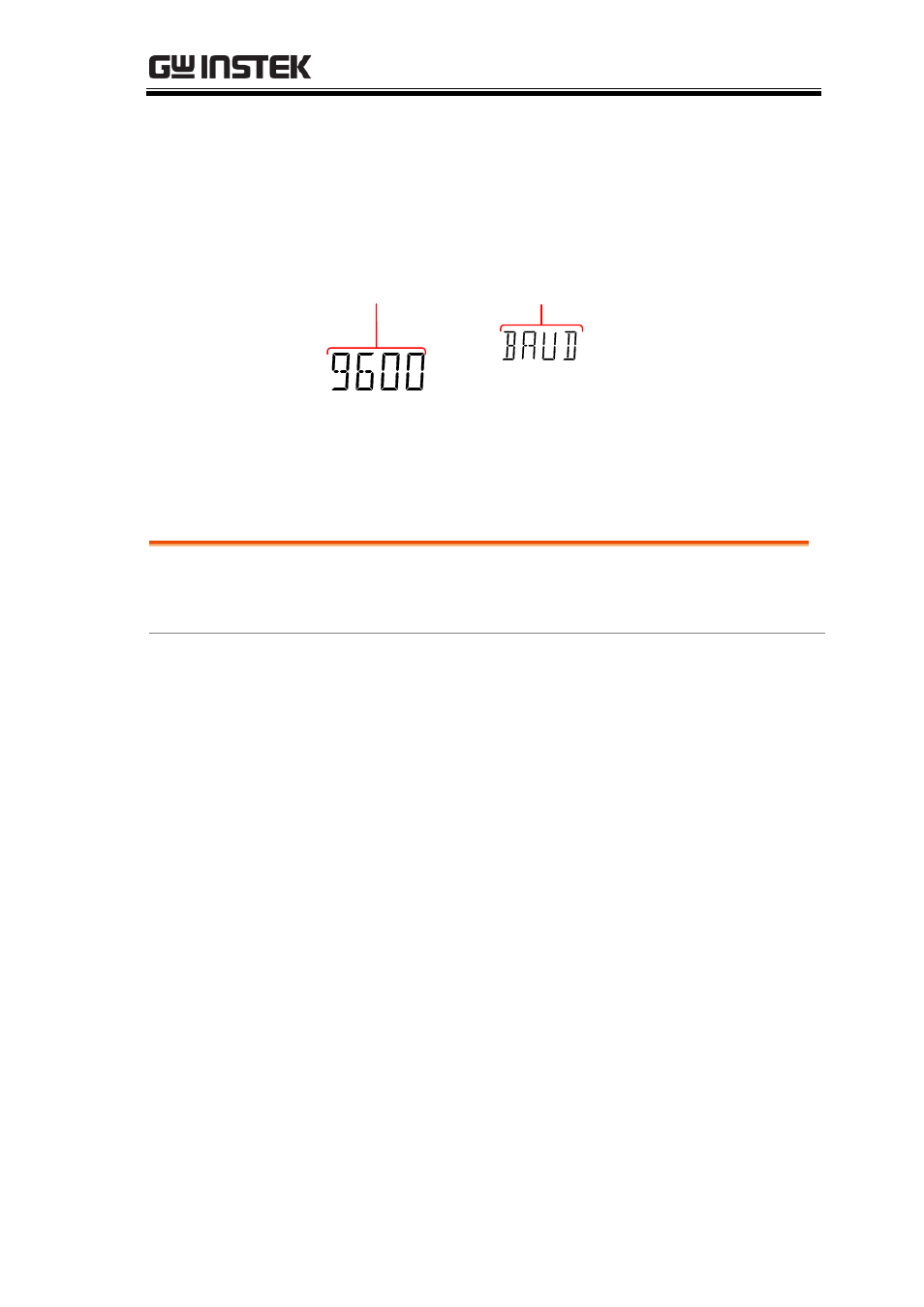

Display

Baud rate

setting

Baud menu

indicator

GPIB Interface

In addition to the USB port, an optional GPIB port (GDM-8342
only) on the rear panel can be used for remote control.

GPIB
configuration

GPIB Address
Range

0~30

Steps

1. Connect the GPIB cable to the rear panel GPIB

port.

2. Press MENU.

3. Go to I/O on level 1.

4. Go to GPIB on level 2.

5. Turn GPIB ON and press Enter to Confirm.

6. The GPIB address settings will automatically

appear after turning GPIB on. Set the GPIB
address.

7. Press Enter to confirm the GPIB address setting.

8. Press EXIT to exit from the System menu.
