GDM-834X Series User Manual

32

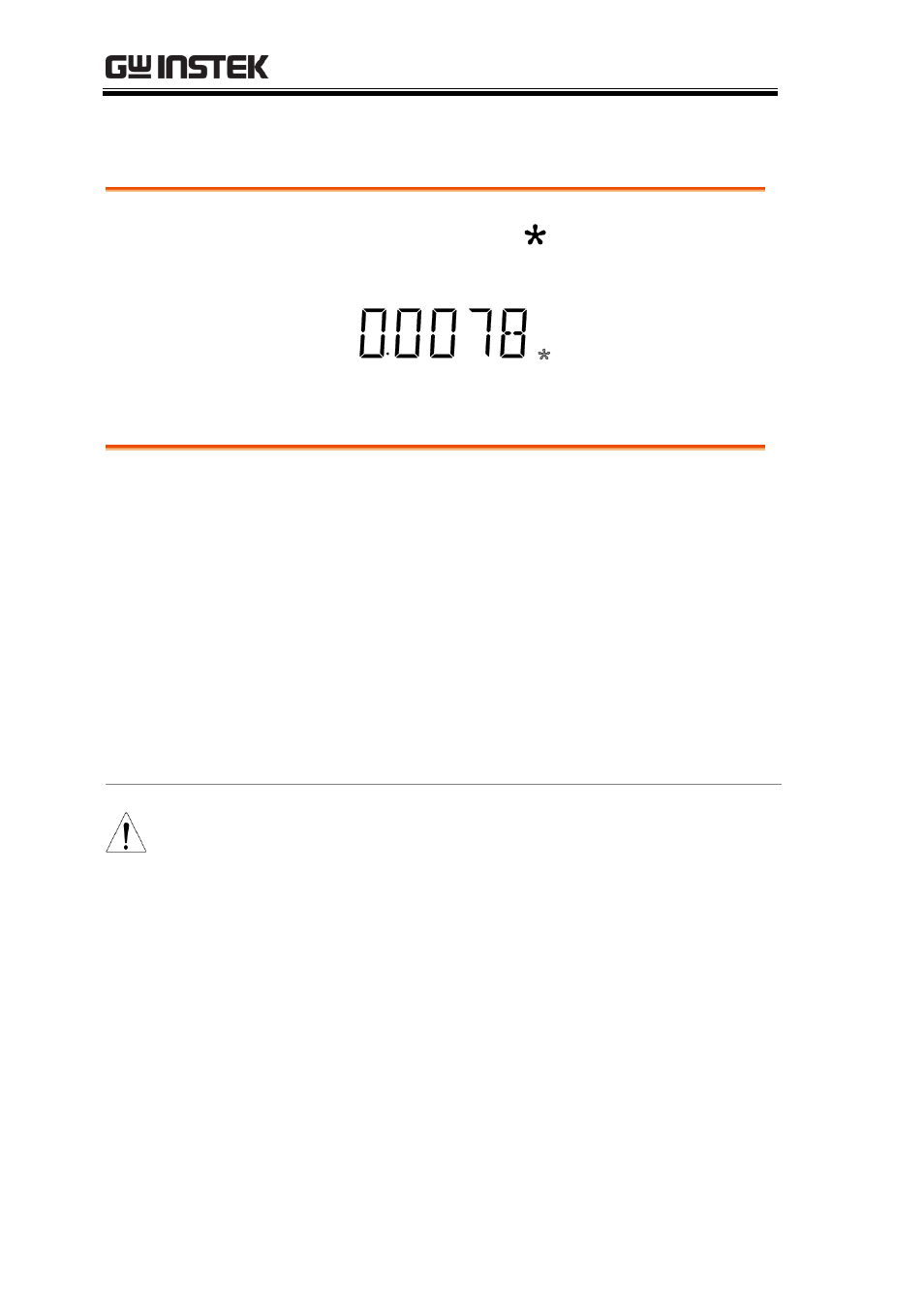

Reading Indicator

Overview

1. The reading indicator next to the 1st display

flashes according to the refresh rate setting.

V

Automatic/Manual Triggering

Overview

By default, the GDM-8342/8341 automatically
triggers according to the refresh rate. See the
previous page for refresh rate setting details.
The TRIG key is used to manually trigger
acquisition when the trigger mode is set to EXT.

Manual Trigger

1. Press SHIFT+TRIG to toggle the trigger mode

to EXT.

2. Press the TRIG key to manually trigger each

measurement when in EXT trigger mode.

Note

Manual triggering is not supported for capacitance
measurements.
