Temperature Measurement

The GDM-8342 can measure temperature using a thermocouple. To
measure temperature, the DMM accepts a thermocouple input and
calculates the temperature from the voltage fluctuation. The
thermocouple type and reference junction temperature are also
considered. Temperature measurement is only supported on the
GDM-8342.

Range

Thermocouple: -200°C ~ +300°C

Procedure

To make temperature measurements, press
SHIFT → Hz/P (TEMP).
The temperature mode appears showing the
temperature on the primary display and the
type of sensor on the secondary display.

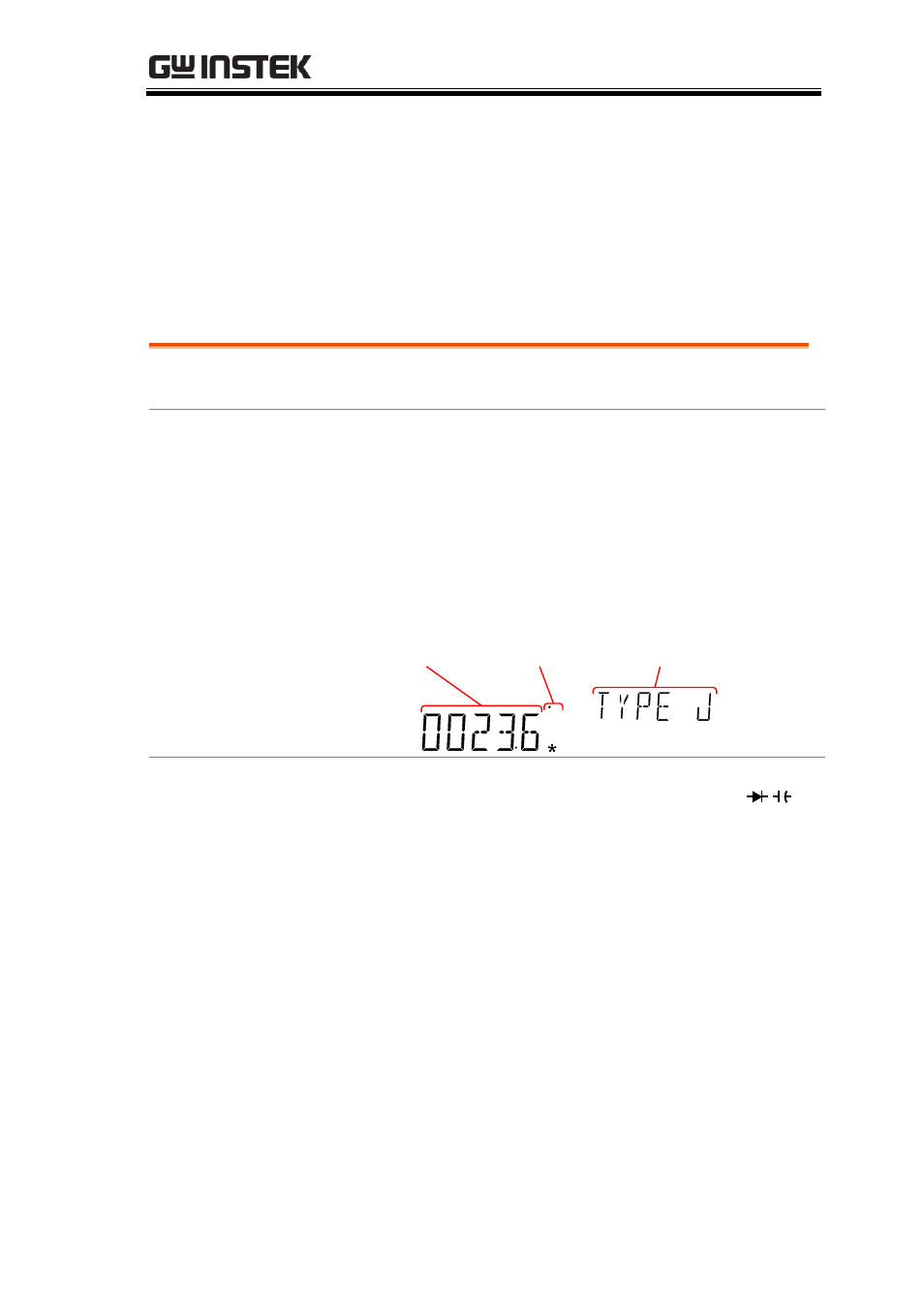

Display

C

S

Measurement

Temp.

units

Sensor type

Connection

Connect the sensor lead between the VΩ

terminal and the COM terminal. The display
updates the reading.
