SEED HAWK® 30 SERIES OPERATOR’S MANUAL 86
4.27 WINGING UP TOOLBAR
1. Make sure all opener shanks are up.
2. Reverse the lever direction in the tractor cab that the GREEN banded hoses are hooked to,
this will allow the wings to fold up into transport position.
NOTE: MAKE SURE TO LOCK THE BALL VALVES ON BACK OF OPENER HYDRAULIC BLOCK.

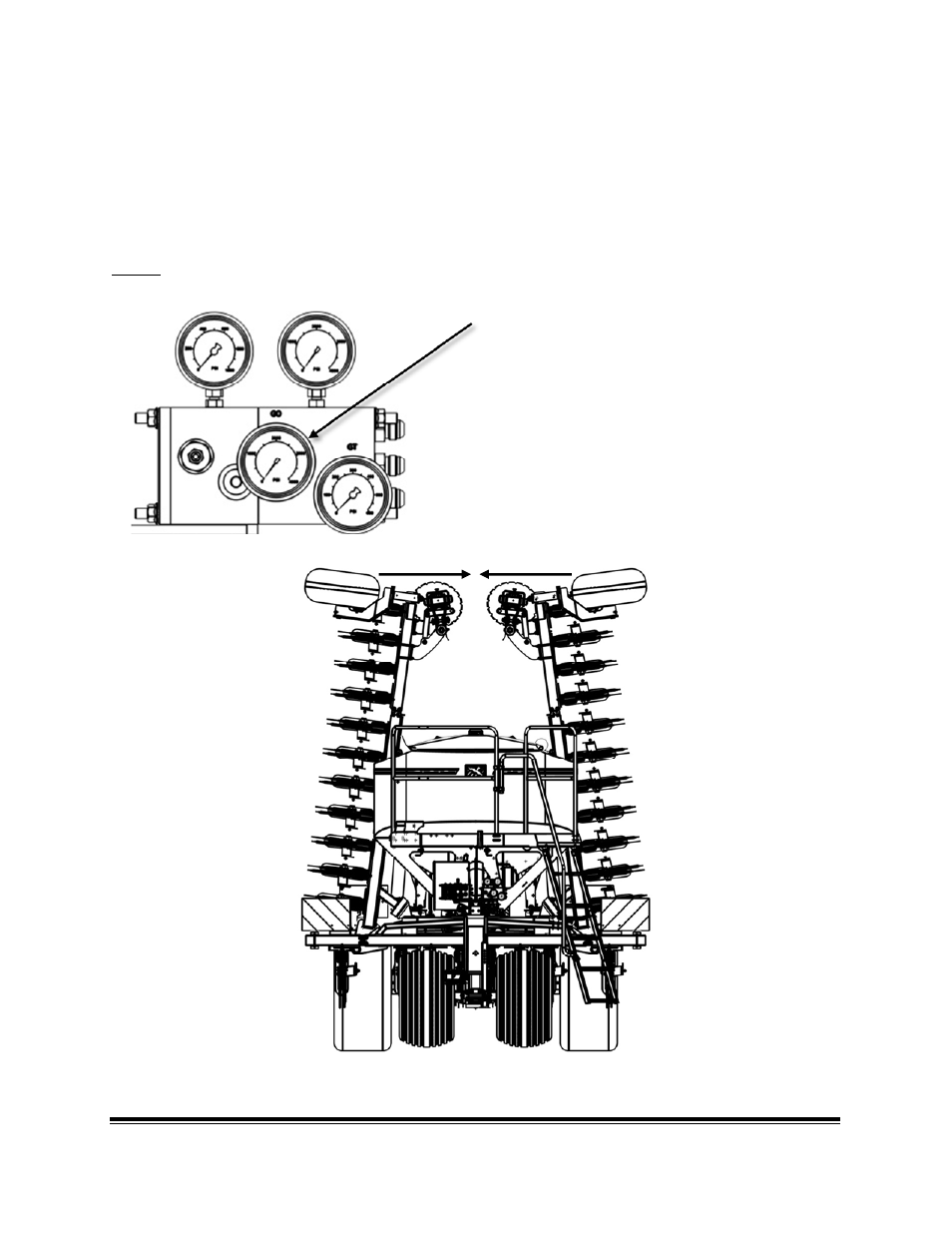

THIS GAUGE WILL READ
PRESSURE WHEN WINGING UP
FIGURE 4.120
FIGURE 4.121
