SEED HAWK® 30 SERIES OPERATOR’S MANUAL
58

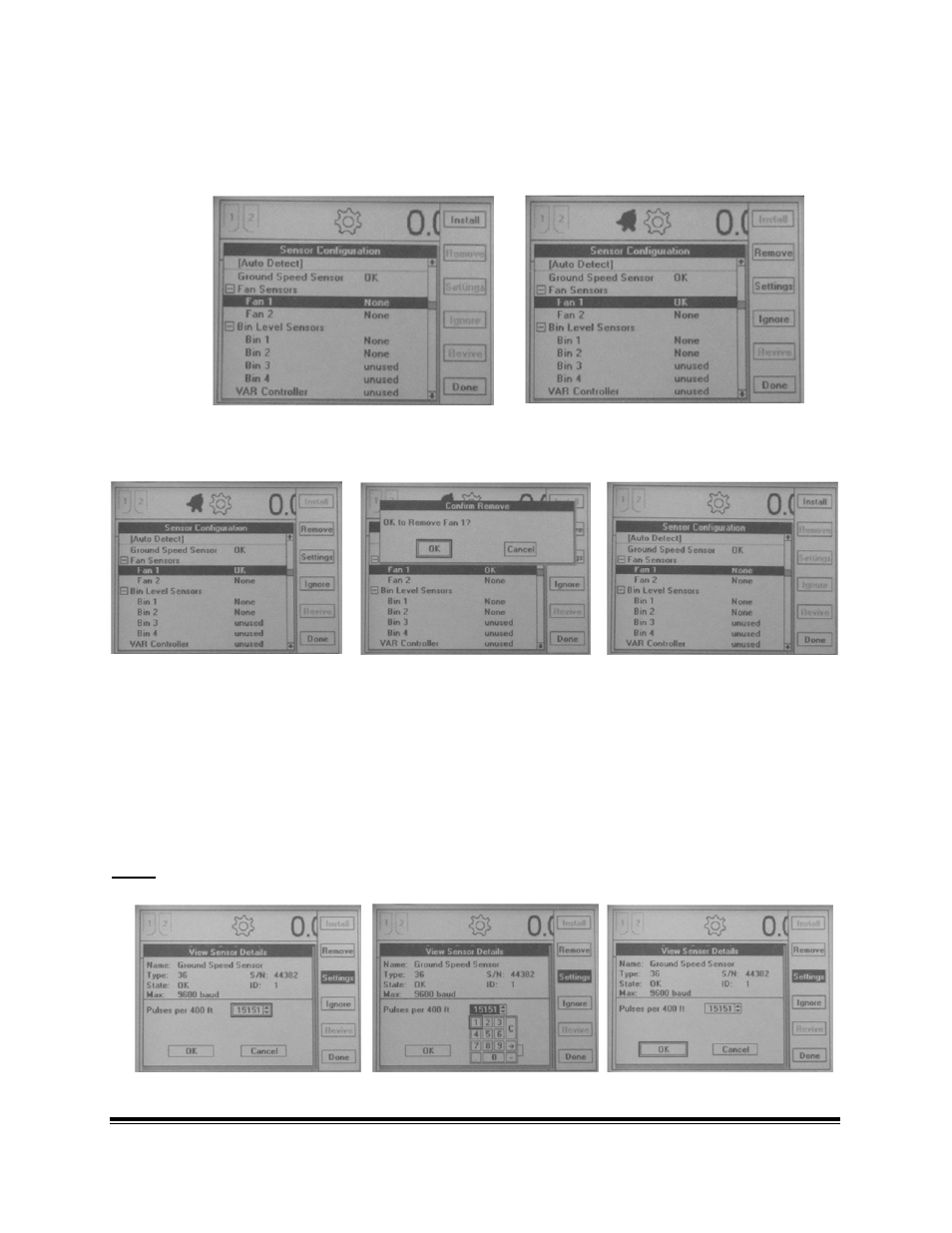

3. Add a sensor: Individual sensors can be added to the MuxBus system at any time. Place the
highlight bar on the sensor needing installed (Fan 2 in the example) and press “install”. Then
plug in the sensor. Multiple sensors can also be added using this method but the user needs to
position the highlight bar on each new sensor and press “Install” before plugging in each
sensor.
4. Remove a sensor: Individual sensors can be removed by placing the highlight bar on the
sensor the user wants to remove and pressing “Remove”, unplug the sensor.
5. Sensor Settings: Specific information about each sensor installed on the MuxBus system can
be viewed by placing the highlight bar on the sensor and pressing “Settings”. The monitor will
display the sensor type number, communication speed, and serial number. Sensors with a user
settable value have a dialog box that can be accessed to enter a value. To do this, navigate to
the dialog box and press “Enter”. A keypad dropdown box will appear. Use the spinner dial or
navigation keys to highlight the individual numbers you want to enter starting with the left
most value.
NOTE: The user press the spinner dial to select individual numbers, then press the “Enter”
button to save the complete value.
FIGURE 4.47
FIGURE 4.48
FIGURE 4.49
