SEED HAWK® 30 SERIES OPERATOR’S MANUAL 31
4.3 HYDRAULIC HOSE HOOK UP

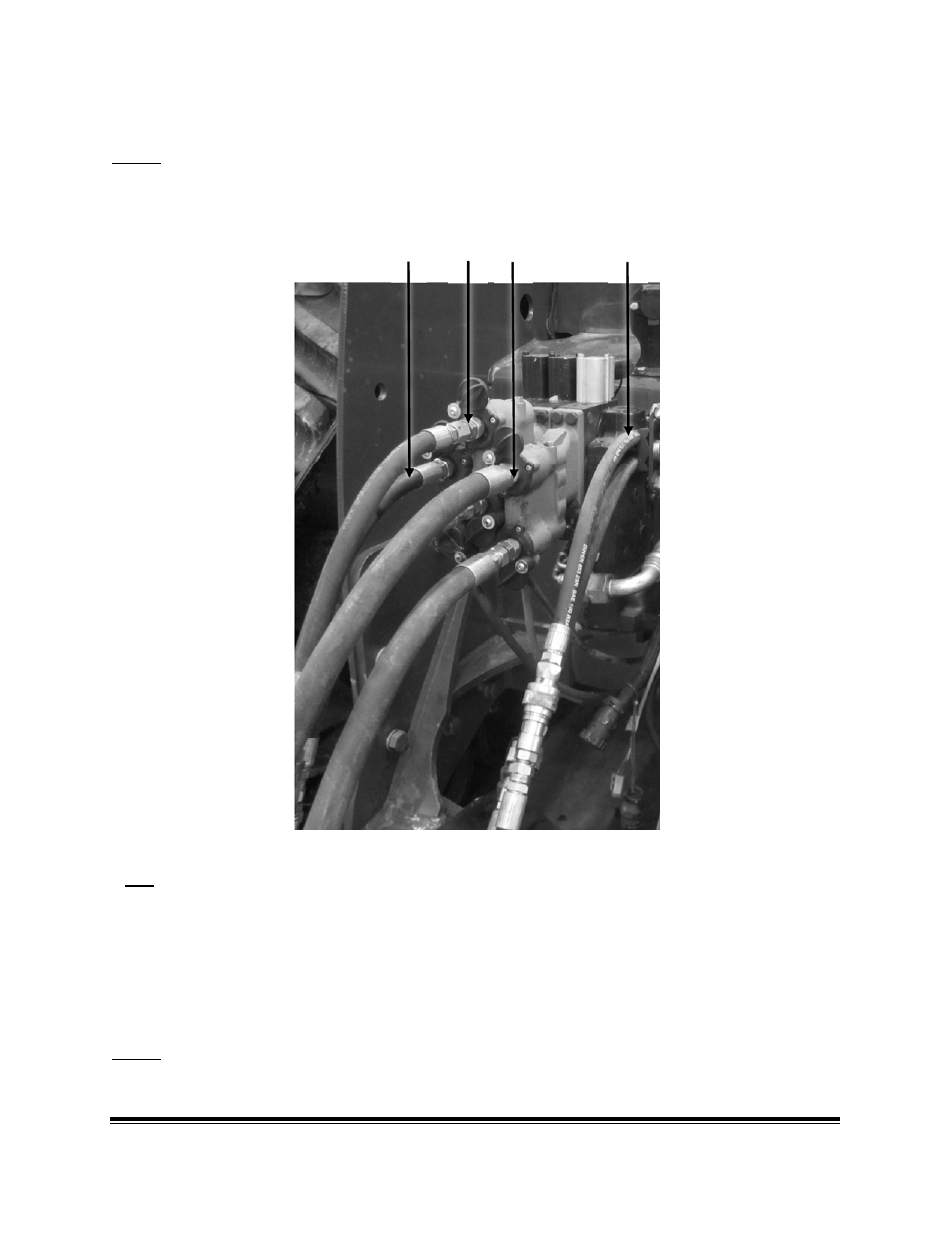

NOTE: THE BELOW PICTURE IS FOR REPRESENTATION ONLY, HYDRAULIC HOSE HOOK UP
WILL VARY DEPENDING ON TRACTOR AND TOOLBAR CONFIGURATTION.
NOTE: IT IS RECOMMENDED THAT THE FAN(S) ARE HOOKED UP TO THE HIGH FLOW CIRCUITS
OF THE TRACTOR.
1 2 3 T
KEY
1
OPENER SHANK LIFT/LOWER CIRCUIT ‐ RED
2 WING LIFT/LOWER CIRCUIT – WIDE GREEN, NARROW GREEN
3 FAN 1 CIRCUIT ‐ BLUE
4 FAN 2 CIRCUIT ‐ RED
T CASE DRAIN TO TRACTOR RESEVOIR ‐ YELLOW
FIGURE 4.1
