SEED HAWK® 30 SERIES OPERATOR’S MANUAL
48

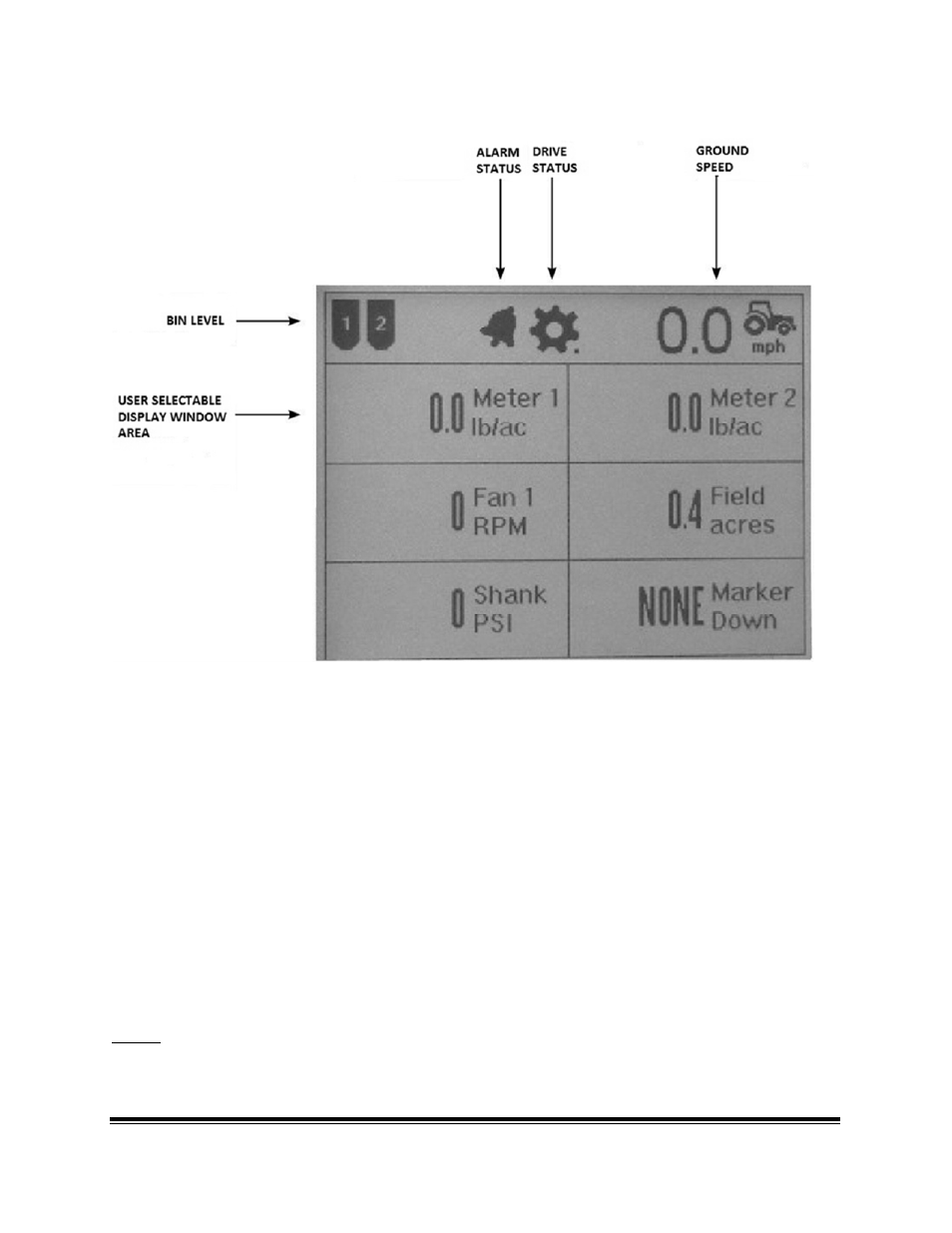

4.16.1 NORMAL OPERATE SCREEN
In the Sample Normal Operate Screen above, the different areas are as follows:
The Top Display Section displays 4 Sets of information.
1. Bin Level Status: The levels of up to 2 bin sensors are shown in the left most area.
2. Active Alarm: Any time an alarm is active a bell will appear to the right of the 4th Bin
Level Icon.
3. Drive Status: The gear icon is an outline when the drive is disengaged and a solid icon
when the drive is engaged.
4. Ground Speed: Indicated by miles per hour (km/hr) in the top right corner
NOTE: The User Selectable Display Window Area is “Sensor Selectable” as well as “View
Selectable”. This is explained SEE “4.17.4 ITEM MENU ON PAGE 52 & 4.17.5 LAYOUT MENU ON
PAGE 53”.
FIGURE 4.27
