SEED HAWK® 30 SERIES OPERATOR’S MANUAL 79

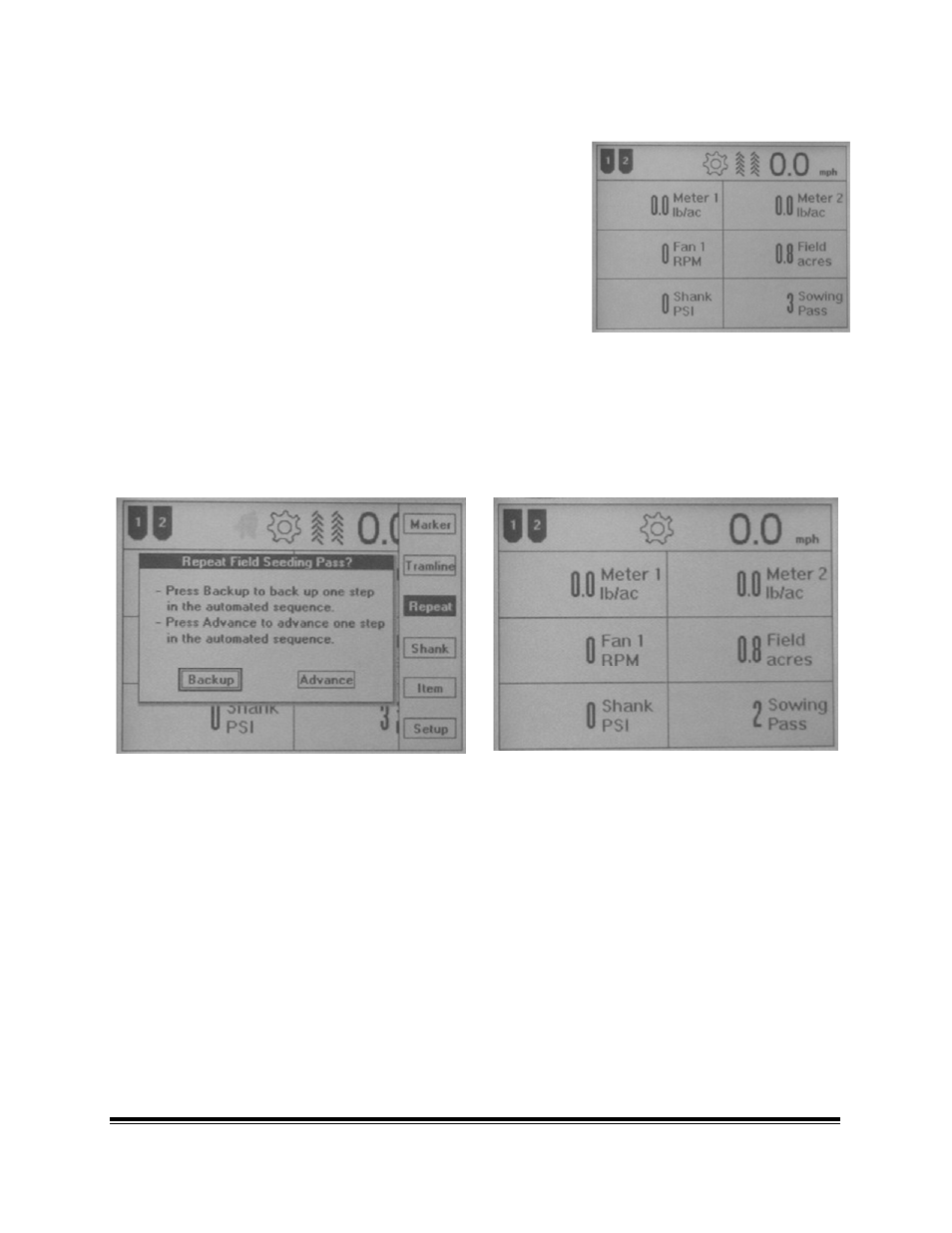

4.24.9 TRAMLINE REPEAT
The soft key labeled “Repeat” allows the user to increment
the field pass and the marker sequence forward or backward
on step at a time. For example, if the user are starting a field
with the tramline active and the user wants to start with pass
#2 instead of pass #1.
Select the “Repeat” soft key and then “Advance” to increment one seeding pass in the registry.
Alternately if the user is in the middle of a seeding pass and must stop and disengage the drive,
but wants to continue on the registry it will increment one pass when it’s restarted. The user
can select “Repeat” from the soft key menu and then select “Backup” to return to the same
seeding pass you were on.
FIGURE 4.99
FIGURE 4.100 FIGURE 4.101
