SEED HAWK® 30 SERIES OPERATOR’S MANUAL 27
3.6 OPENERS
3.6.1 QUICK PIN OPENER
# ITEM DESCRIPTION
1 SEED KNIFE
1/2” (13 mm) thick, includes stainless steel clip and
rubber drop tube
2 FERTILIZER KNIFE
1/2” (13 mm) thick, includes stainless steel clip and
rubber drop tube
3
PACKER TIRE (PNEUMATIC OR
SEMI‐PNEUMATIC) The packer/gauge wheel. 5 bolt hub for tapered hub
and bearing
4 PACKER ARM Improved mud clearance
5 MAIN SHANK ARM 5/8” (16 mm) thick
6 OPENER SHANK CYLINDER
Hydraulic pressure applied to the rod end of the
cylinder
7
DEPTH ADJUSTMENT PIVOT
POINT
The relationship of seed to fertilizer placement will
always stay the same with the pivot point at this
location.
8
QUICK PIN DEPTH SETTING
DEVICE A positive pin setting. Provides easy adjustment to
obtain optimum seed and fertilizer depth.
9 CHAIN
A visual from the tractor cab to use as a reference to
the proper packing and penetration forces needed
per field.

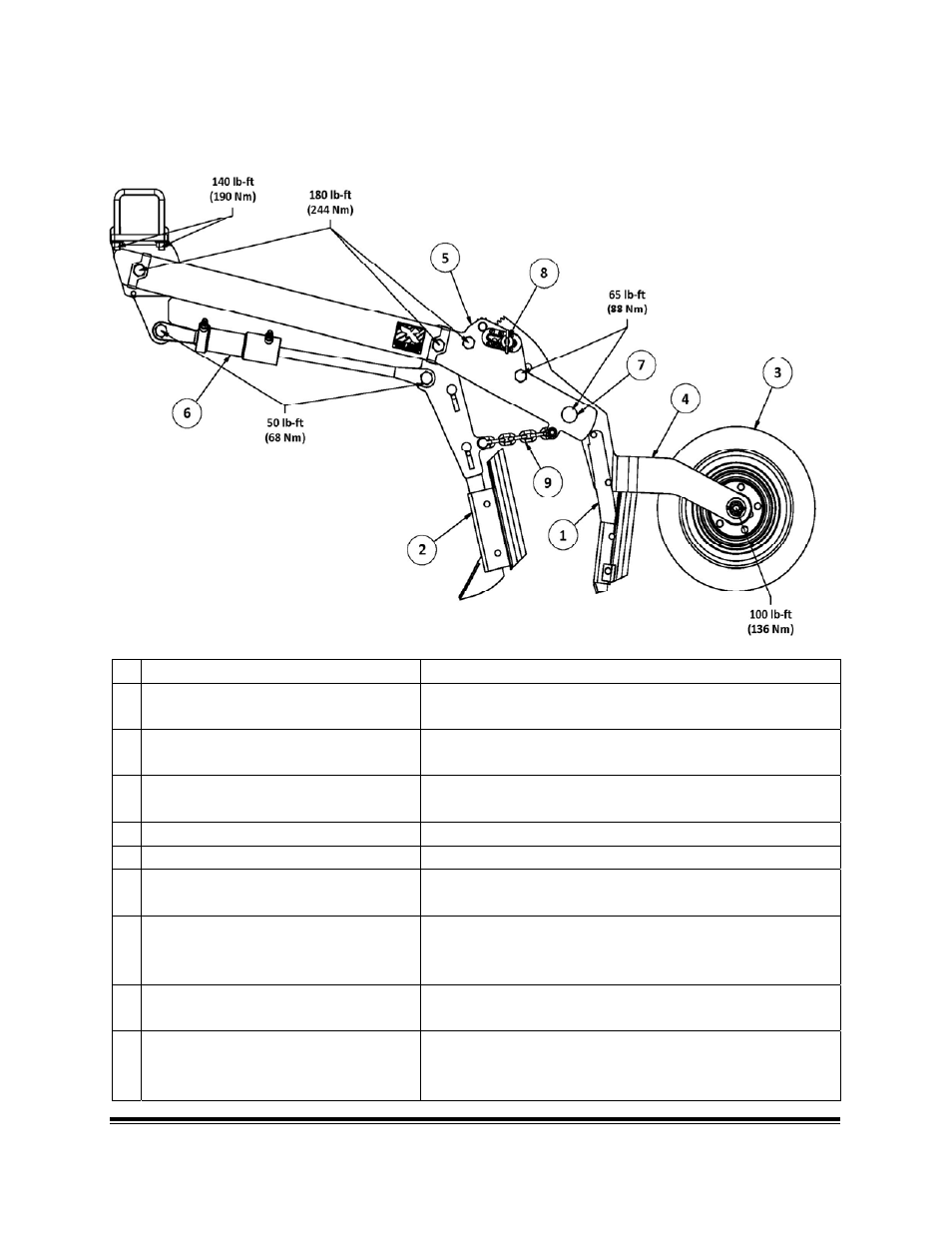

FIGURE 3.1
