SEED HAWK® 30 SERIES OPERATOR’S MANUAL 39

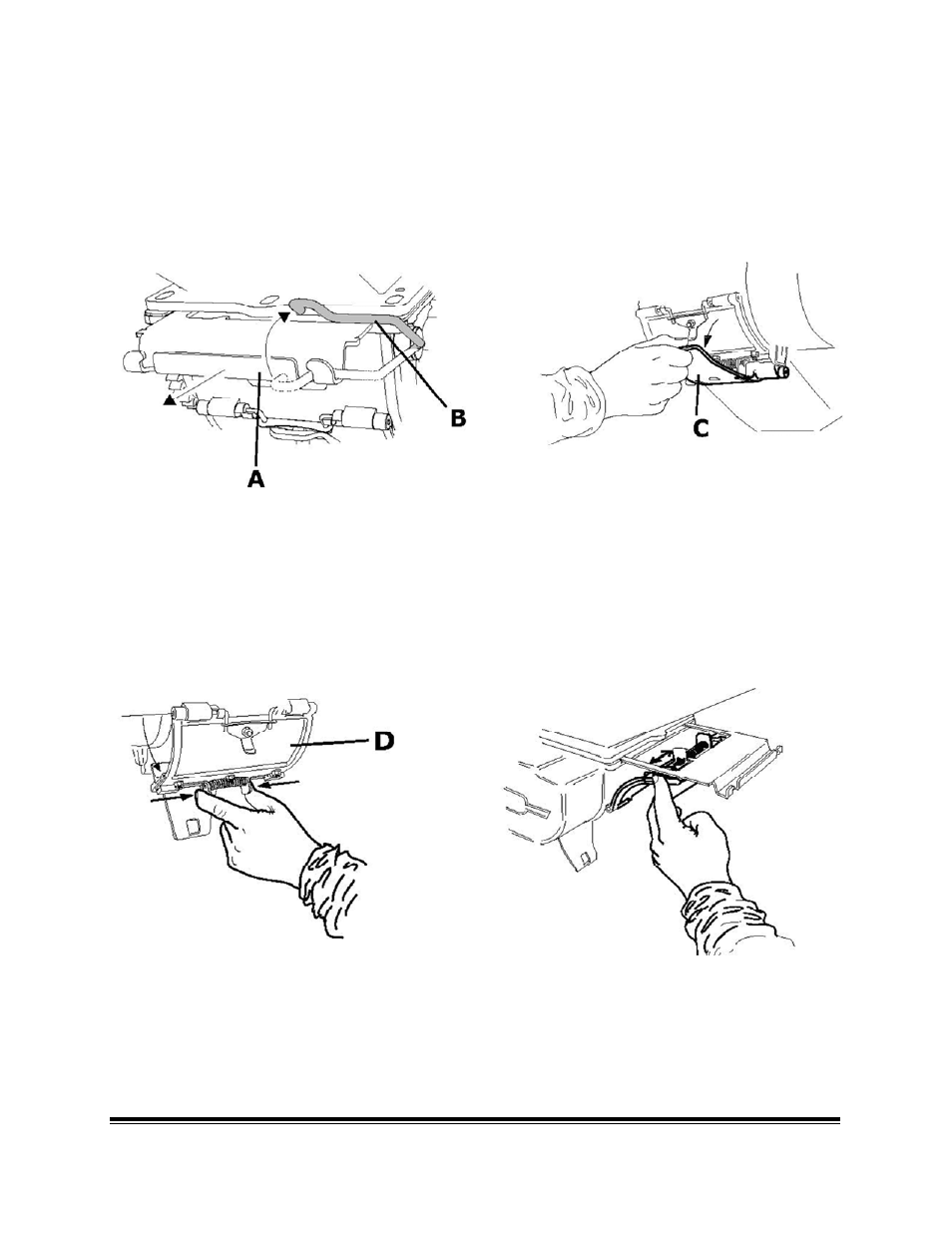

4.10 OPENENING THE EMPTY HATCH/EMPYING THE METER
1. Shut off the supply of the seed from the seed hopper to the meter by undoing the latch
clamp (B) and pulling out the shut‐off hatch (A) as far as it will go.
2. Open the latch clamp (C).
3. Press together the spring‐loaded lock on the emptying hatch (D) and open the hatch. If
necessary (e.g rotor replacement), the hatch can be locked in the open position. SEE FIGURE
4.11.
FIGURE 4.9
FIGURE 4.10
FIGURE 4.11 FIGURE 4.12
