SEED HAWK® 30 SERIES OPERATOR’S MANUAL 104
5.9.2 METERING UNIT
The interior of the seed housing must be cleaned and checked at regular intervals for wear of
the plastic and rubber parts. Check the cabling.
5.9.3 CLEANING CANOLA/RAPESEED ROTOR
Dismantle the rapeseed rotor and clean it if required. This should always be cleaned at the end
of the season. Remove the rotor SEE “4.11 ROTOR REPLACEMENT” ON PAGE 40.
Undo the two
screws holding the rotor together. Dismantle the rotor and clean each part separately. The
pulse washer on the end of the rotor should not be removed.
5.9.4 CLEANING GRASS ROTOR
Dismantle the grass rotor and clean it if required. This should always be cleaned at the end of
the season. Remove the rotor SEE “4.11 ROTOR REPLACEMENT” ON PAGE 40.
Undo the two
screws holding the rotor together. Dismantle the rotor and clean each part separately. The
pulse washer on the end of the rotor should not be removed.
Assemble the rotor in reverse order, make sure that the rotor rings are fitted correctly.

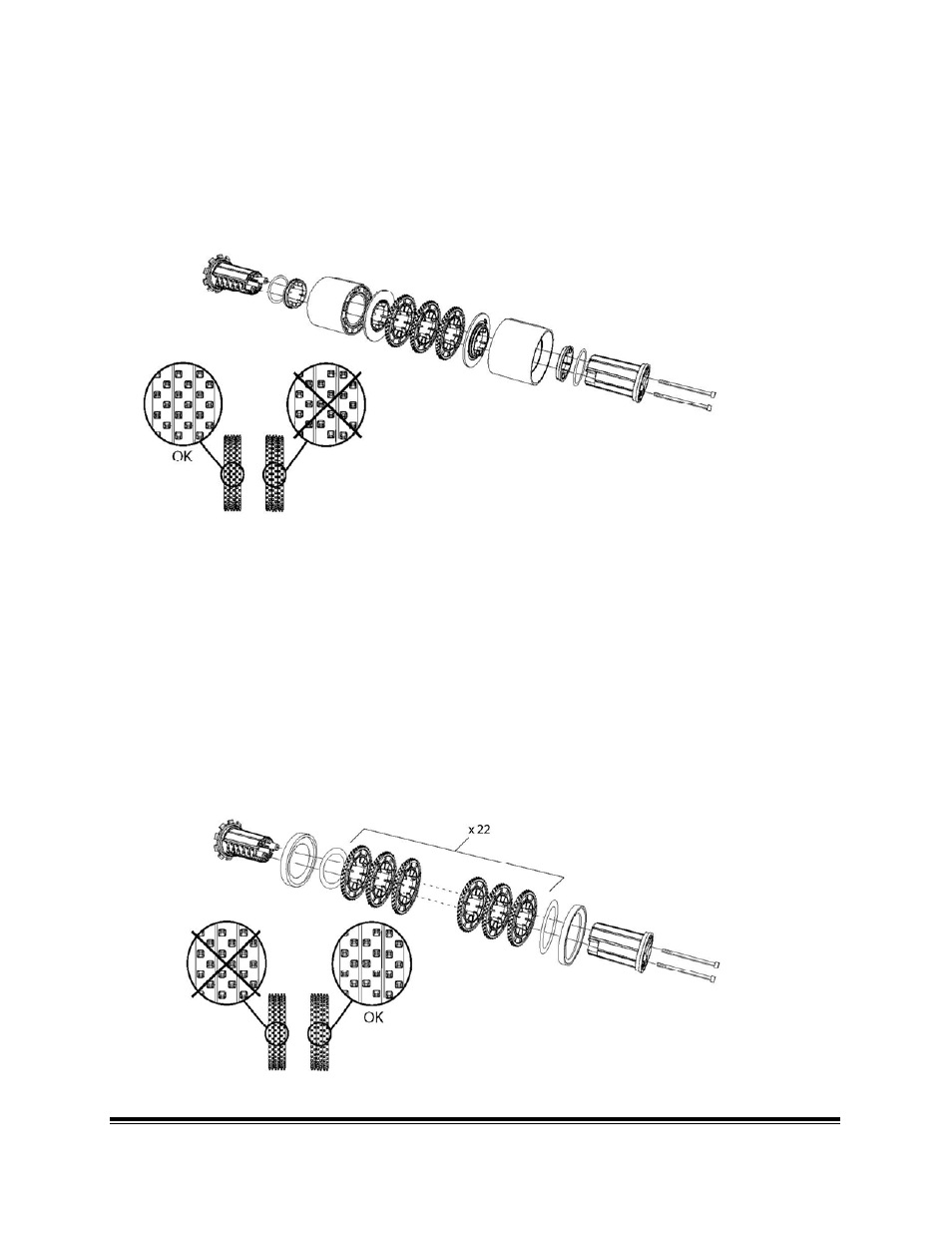

FIGURE 5.10
FIGURE 5.11
