SEED HAWK® 30 SERIES OPERATOR’S MANUAL
112

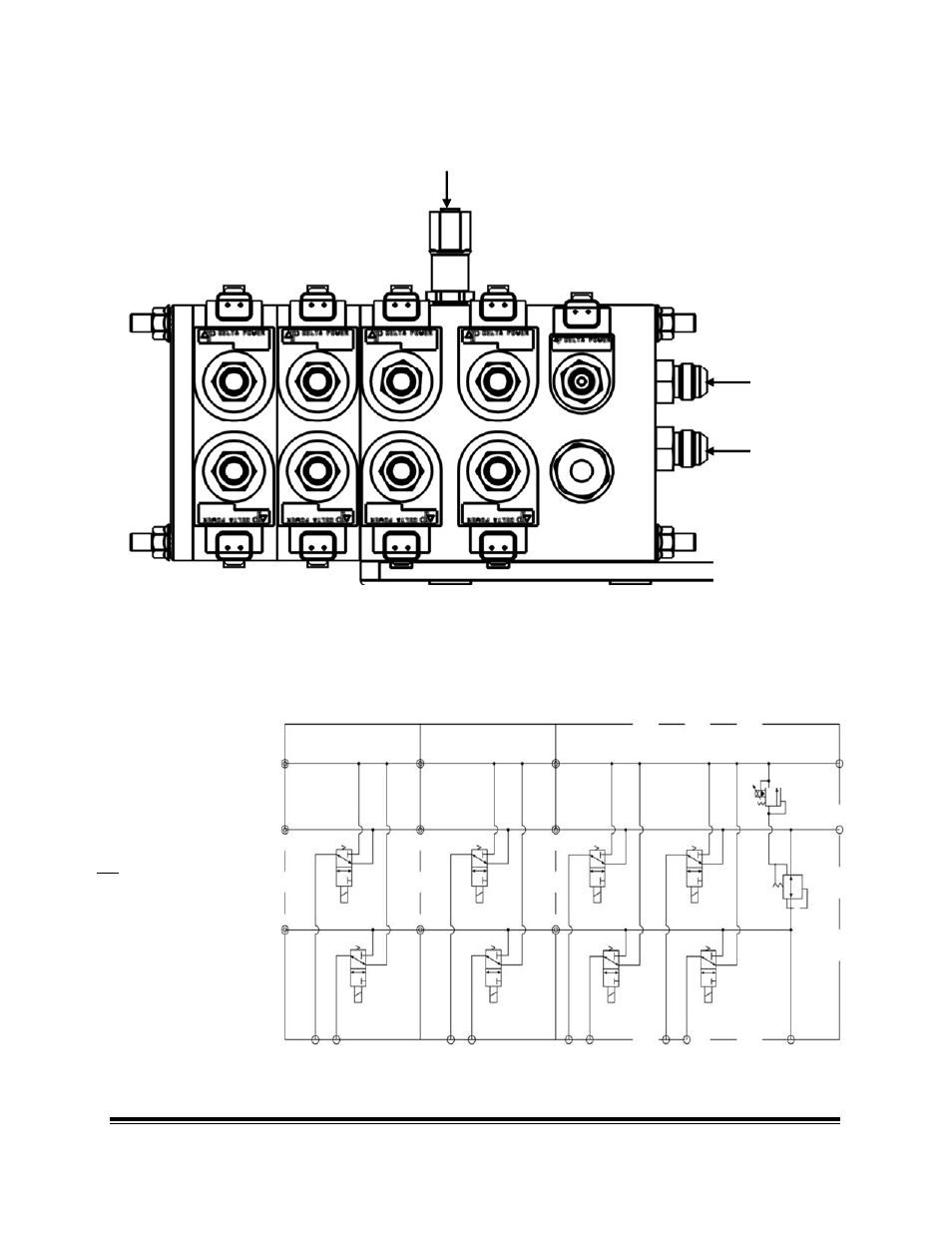

7.1.4 OPENER HYDRAULIC BLOCK (MARKER ARM & TRAMLINE OPTION)
PRESSURE TRANSDUCER
TANK
PRESSURE
B4 A4 B3 A3 B2 A2 B1 A1 RP
T
P
KEY
T
TANK
P
PRESSURE
A1
SHANK RODS
B1
SHANK CAPS
A2
TRAMLINE RODS
B2
TRAMLINE CAPS
A3
MARKER ARM ROD
B3
MARKER ARM CAP
A4
MARKER ARM ROD
B4
MARKER ARM CAP
RP
0‐2000 PSI PRESSURE
TRANSDUCER
