4.24.7 TRAMLINE SETUP
The Tramline function must be enabled to be used. Also, Tramline control valves must be
connected to the system harness for the monitor to show any operation function.
1. To enable the tramline operation, press any of the soft
keys to bring up the soft key menu. Then press the
“Tramline” button. Press “Enter” again to bring up the
Enable/Disable menu.
2. Navigate to “Enable” and press “Enter”. Navigate to
“Sprayer Boom Width” and press “Enter”. A drop down
keypad will appear so the user will be able to enter the
width of the sprayer.
NOTE: The sprayer boom width must be a multiple of the Seeding pass width. If the Seeding
pass width is 30ft (9m) the sprayer boom width must be 30ft (9m), 60ft (18m), 90ft (27m),
120ft (35.58m) etc. The seeding pass width is the same as the implement width entered in
Global settings and should not need to be changed as is carries in from the global setting entry.
It cannot be accessed from this screen. If the user makes changes to these settings, cycle the
power on the monitor to reset all the values in the permanent memory.
3. “Start First Field Pass” resets the register to pass # 1
when it is set to “YES”. To change this setting navigate to
this menu choice and press “Enter” then highlight the
choice you want and press “Enter”. This menu selection
should normally be set to “NO” so the pass register does
not reset when you access this screen.

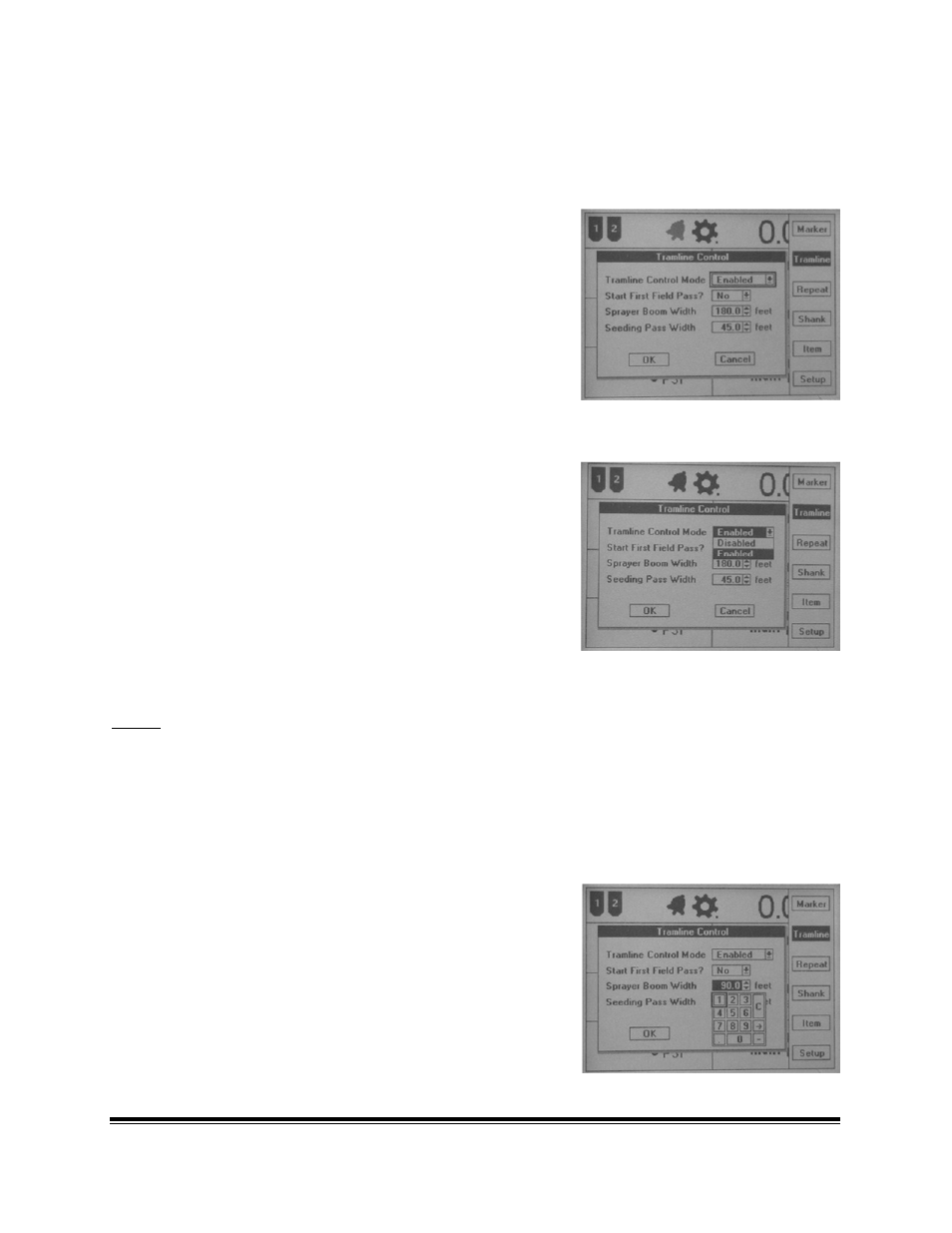

FIGURE 4.96
FIGURE 4.95
FIGURE 4.94
