SEED HAWK® 30 SERIES OPERATOR’S MANUAL 40
4.11 ROTOR REPLACEMENT
The 30 Series comes equipped with an electric feed where the feed quantity is influenced by a
rotor and the gear setting; SEE “11.0 SEEDING TABLE” ON PAGES 123 & 124.
The rotor for the required seed output attachment must be fitted prior to drilling. There are
three different rotors to choose from: a rapeseed rotor, a grass rotor and a grain rotor.
1. Switch off the supply of seed to the seed box with the shut‐off hatch and open the emptying
hatch, SEE “4.10 OPENING THE EMPTYING HATCH/EMPTYING THE SEED BOX” ON PAGE 39.

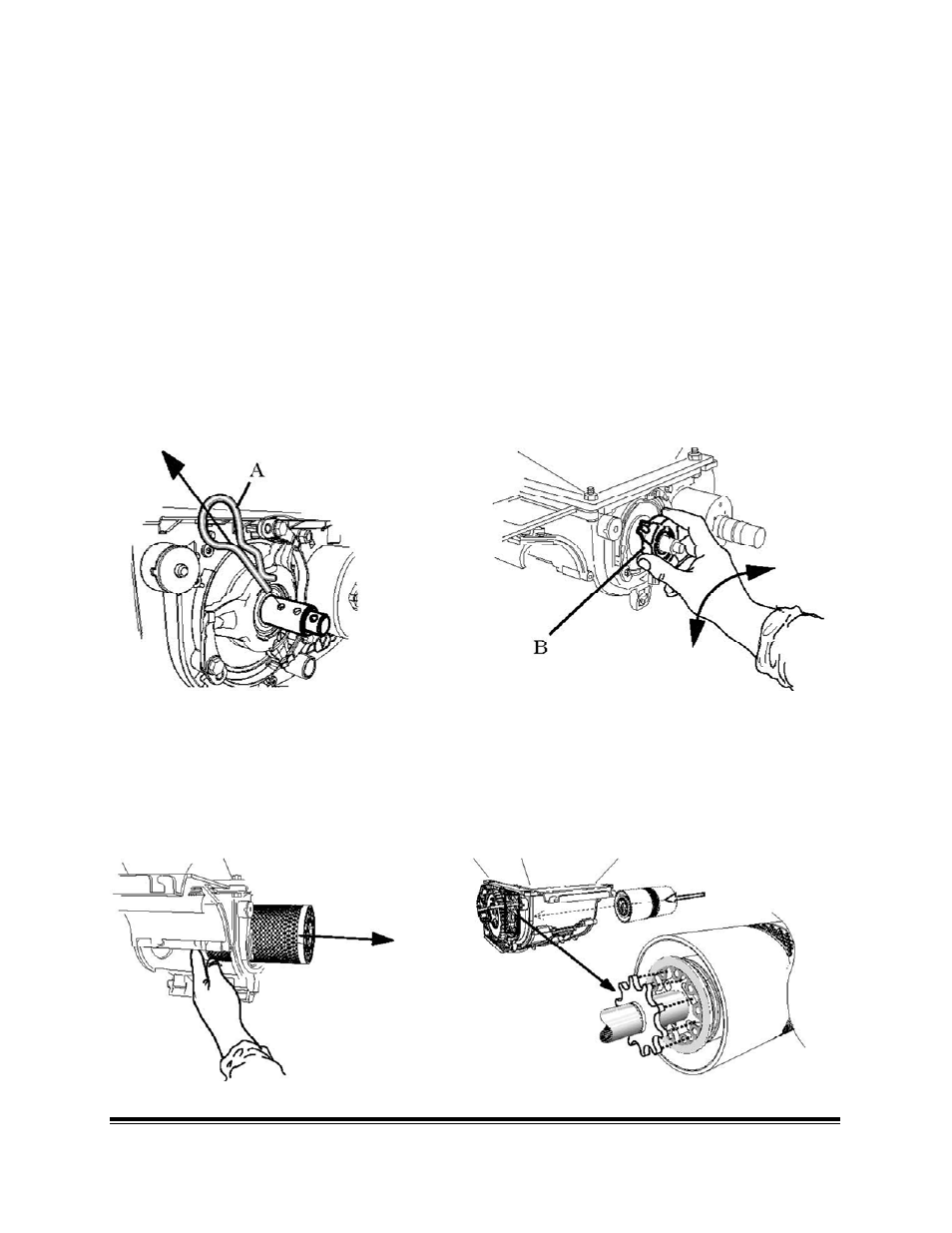

2. Pull out the gearbox locking pin (A).
3. Remove the bearing (B) by twisting it out of its snap mountings.
4. Switch to the required rotor. Make sure that the rotor engages correctly in the driveshaft,
SEE FIGURE 4.16.
FIGURE 4.13 FIGURE 4.14
FIGURE 4.15
FIGURE 4.16
