SEED HAWK® 30 SERIES OPERATOR’S MANUAL
67
5. Empty product from calibration bucket caught during
the Prime cycle. Reposition calibration bucket under
meter and select "Calibrate". The meter will turn at the
same RPM as in the prime mode.
6. Meter will begin to turn. Stop the meter by selecting
"Continue".
7. Enter the total weight of product caught minus the
weight of the empty calibration bag. Select "OK" when
finished.
8. Calibration for this meter is now complete, repeat steps to calibrate remaining meters.
ATTENTION: DO NOT INCLUDE THE WEIGHT OF THE CALIBRATION BAG IN THE METERED
WEIGHT VALUE. THE MONITOR MUST BE POWERED DOWN PROPERLY BY PRESSING AND
HOLDING THE POWER BUTTON UNTIL THE MONITOR POWERS DOWN. FAILURE TO DO SO
WILL RESULT IN LOST DATA.

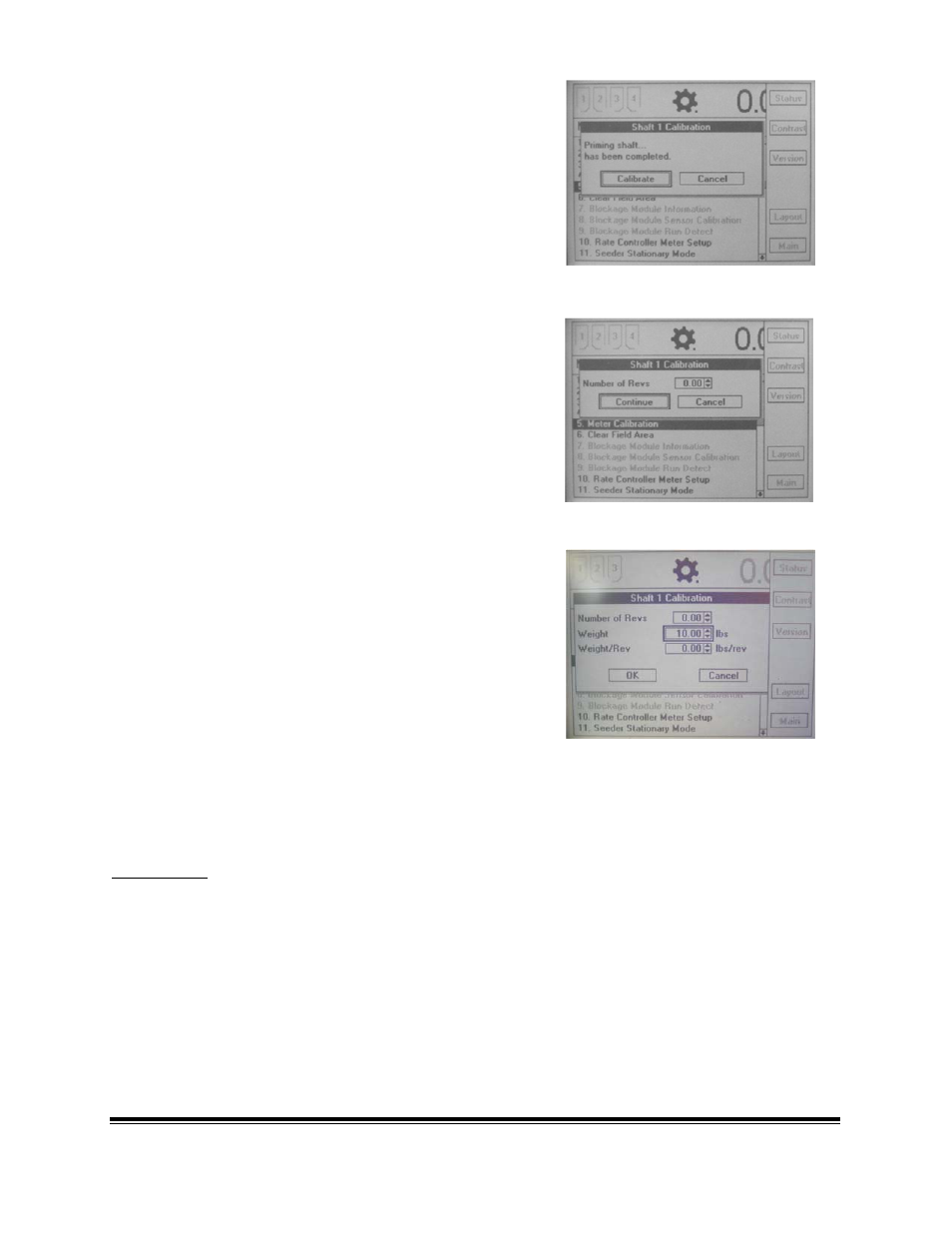

FIGURE 4.71
FIGURE 4.72
FIGURE 4.73
