SEED HAWK® 30 SERIES OPERATOR’S MANUAL 85
4.26 EMPTYING THE SEED HOPPER
The seed drill unit must be in its lowered position on the chassis before the seed hoppers are
emptied.

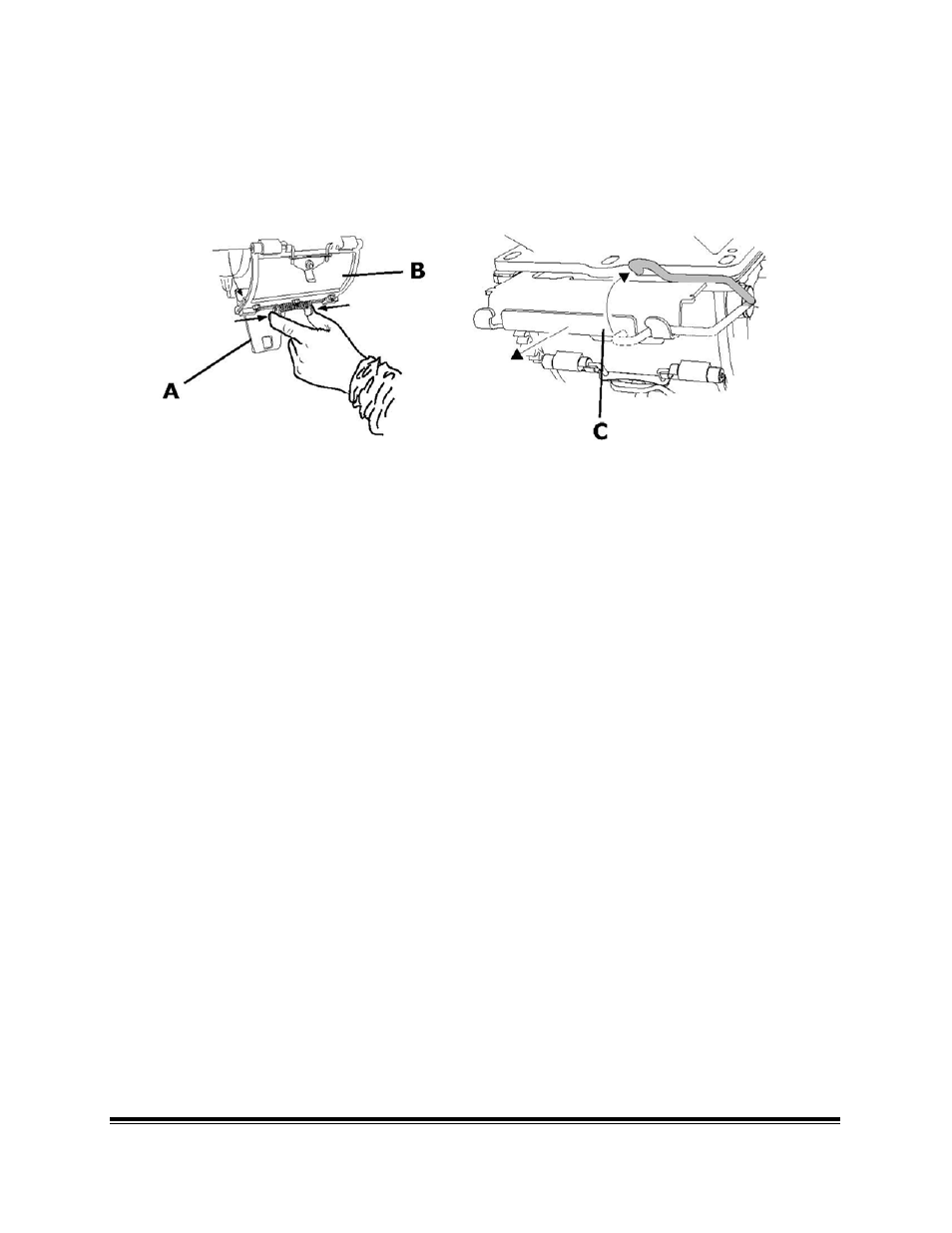

When the seed hopper is to be emptied, open the latch clamp (A), allow the emptying hatch (B)
to hang down and push in the shut‐off hatch (C).
1. Do not forget to close the emptying hatch (B) after emptying. The latch clamp can be closed
if the hatch is closed correctly. If the latch clamp cannot be closed, open and clean so that the
emptying hatch lock can catch correctly.
2. Check and clean the rotors after emptying of the seed hoppers. This is particularly important
when the seed box is used for fertiliser feed.
FIGURE 4.118 FIGURE 4.119
