SEED HAWK® 30 SERIES OPERATOR’S MANUAL
113

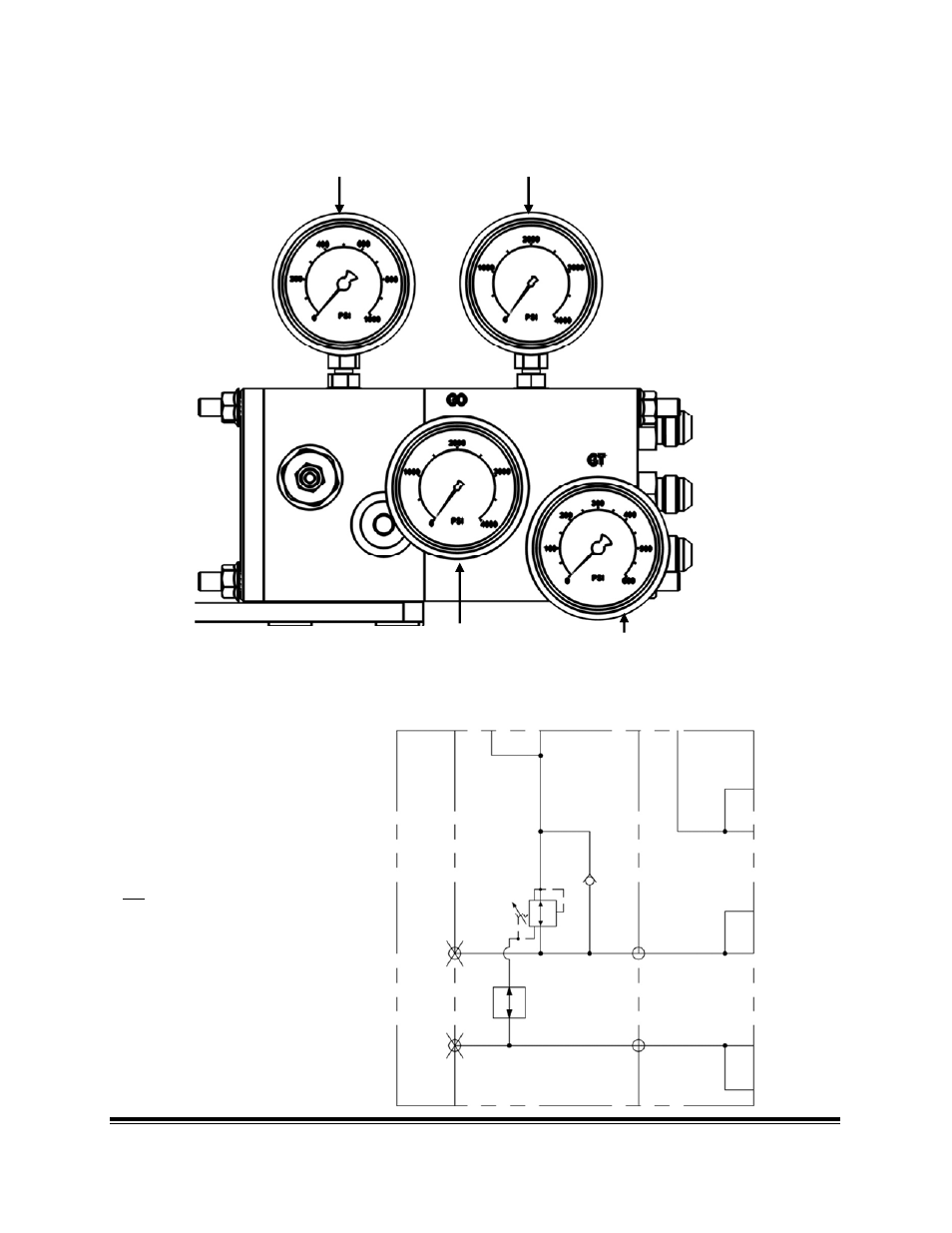

7.2 WING HYDRAULIC BLOCK
WING GAUGE
TRACTOR PRESSURE
GAUGE
TRACTOR RETURN
GAUGE
TANK PRESSURE
GAUGE
GWG WC WR
GO
OUT
GP
P
T
GT
KEY
P
TRACTOR PRESSURE
T
TANK
OUT
TRACTOR RETURN
WR
WING ROD
WC
WING CAP
GP
0‐4000 PSI GAUGE
GO
0‐4000 PSI GAUGE
GT
0‐600 PSI GAUGE
GWG
0‐1000 PSI GAUGE
