SEED HAWK® 30 SERIES OPERATOR’S MANUAL 75
The user can also view the actual system pressure while
seeding by selecting it as a display item. The monitor will
display the applied down pressure on the run screen. To
add this to the display press any of the soft keys to bring
up the soft key menu, then press “Item”. A highlight box
will appear over the upper LH window. Navigate the
highlight box to the display where the user wants to place
the shank down pressure information, then press
“Enter”. A menu will appear with a list of all the items
you can display in the window. Navigate to “Shank” and
press “Enter”.
NOTE: The window item selection is time limited. If no action is taken after selecting “Item”
from the soft key menu the monitor will cancel the function. The correct item type for this
function is “Shank”. There is also a selection choice called “Pressure”. This is reserved for an
optional pressure measurement sensor for use with the MUX sensor system.
4.24.5 MARKER ARM SETUP
NOTE: The marker function must be enabled to be used. Also, marker control valves must be
connected to the system harness for the monitor to show any operation function.
1. To enable the marker operation press any of the soft keys to bring up the soft key menu.
Then press the “Marker” button. Press “Enter” again to bring up the Enable/Disable menu.
Navigate to “Enable” and press “Enter”.
2. The user can then select which marker (right or left)
you want to extend with the first pass or the user can
select both, to extend markers on both sides of the
seeder.
NOTE: The “Both” function is only active for one pass. At
the end of a seeding pass with both markers extended
they will both retract, then the RH marker will extend by
default with the next pass and the markers will alternate
between Right and Left with each pass.

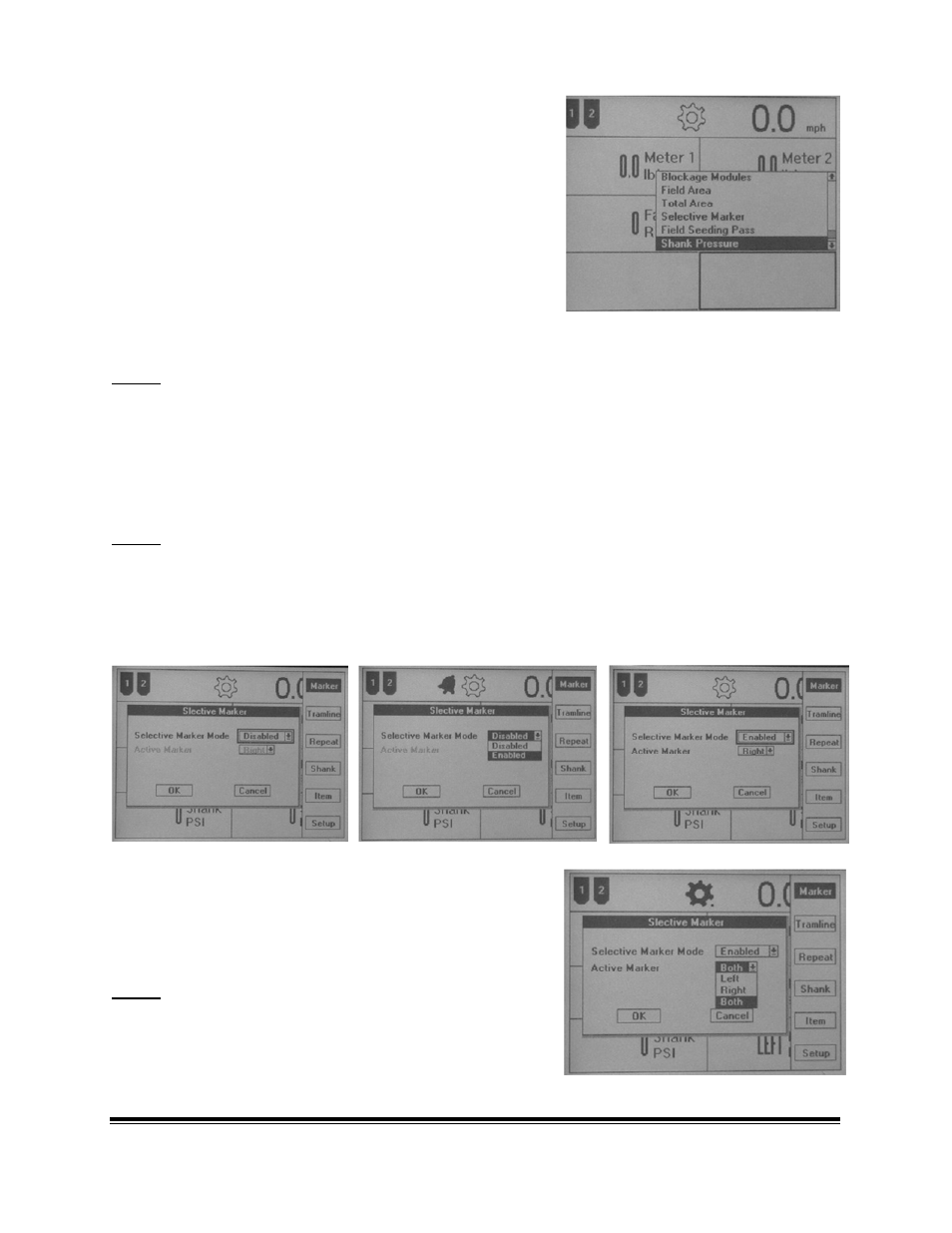

FIGURE 4.89
FIGURE 4.90
FIGURE 4.91
