SEED HAWK® 30 SERIES OPERATOR’S MANUAL
109
7.0
HYDRAULIC
MANIFOLD
BLOCKS
7.1 OPENER HYDRAULIC BLOCKS

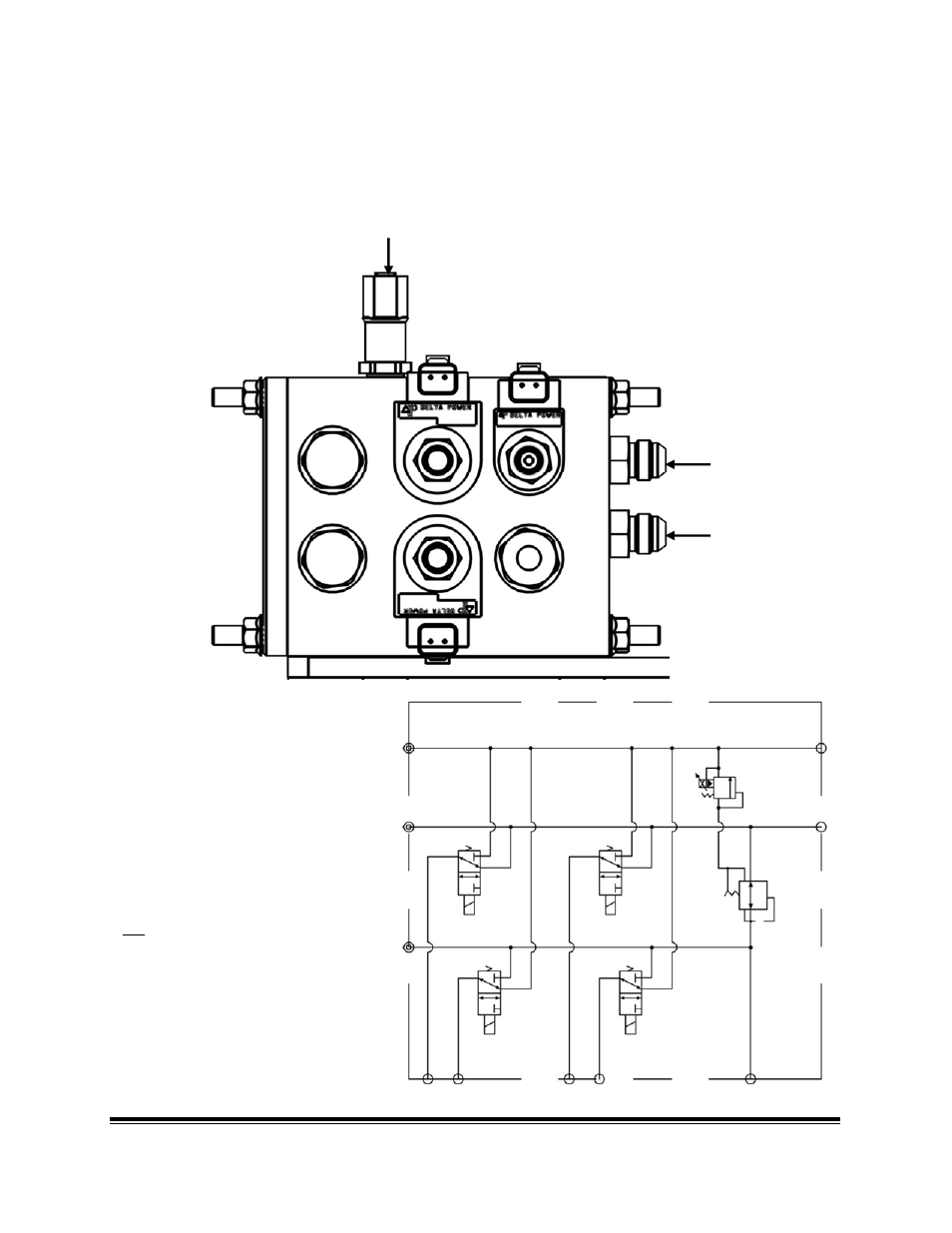

7.1.1 OPENER HYDRAULIC BLOCK (NO OPTIONS)
PRESSURE TRANSDUCER
TANK
PRESSURE
KEY
T
TANK
P
PRESSURE
A1
SHANK RODS
B1
SHANK CAPS
A2
NOT USED
B2
NOT USED
RP
0‐2000 PSI PRESSURE
TRANSDUCER
T
P
B2 A2 B1 A1 RP
