SEED HAWK® 30 SERIES OPERATOR’S MANUAL 47
4.16 NORMAL STARTUP
For everyday operation the monitor will remember all settings that have been saved from the
previous use. Must be powered down properly, REFER TO “4.16.2 FUNCTION KEYS” ON PAGE
49.
1. Press the power button to begin.
2. As the Seed Hawk Logo is displayed, the monitor performs a “self test”. During this self test,
the monitor will check that all “learned” sensors are connected.

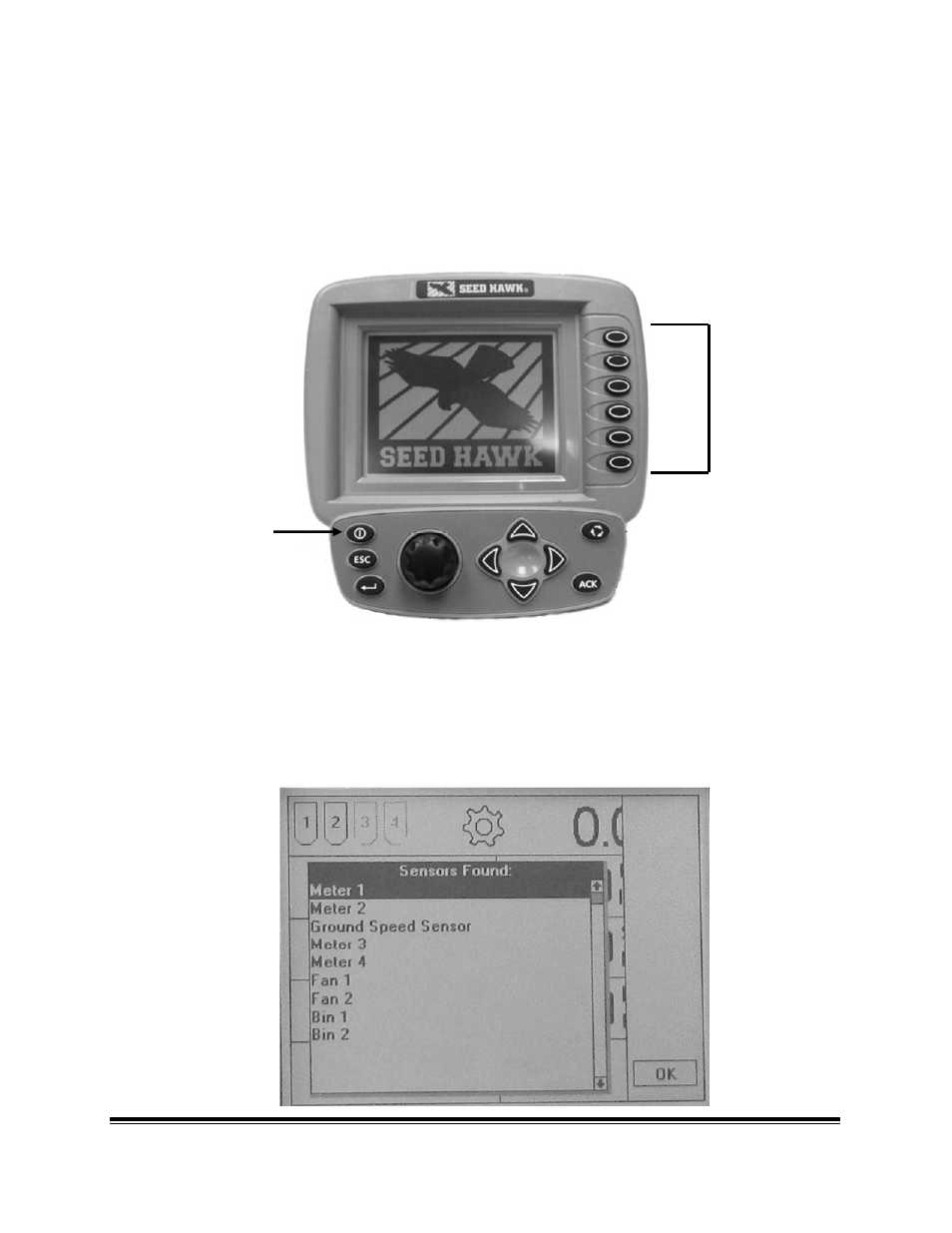

3. Once this test is complete, all sensors found by the system are listed as shown in the image
below.
4. Press the soft key labeled “OK” to continue to the Normal Operate Screen.
Soft Keys
Power
Button
FIGURE 4.26
FIGURE 4.25
