SEED HAWK® 30 SERIES OPERATOR’S MANUAL
56

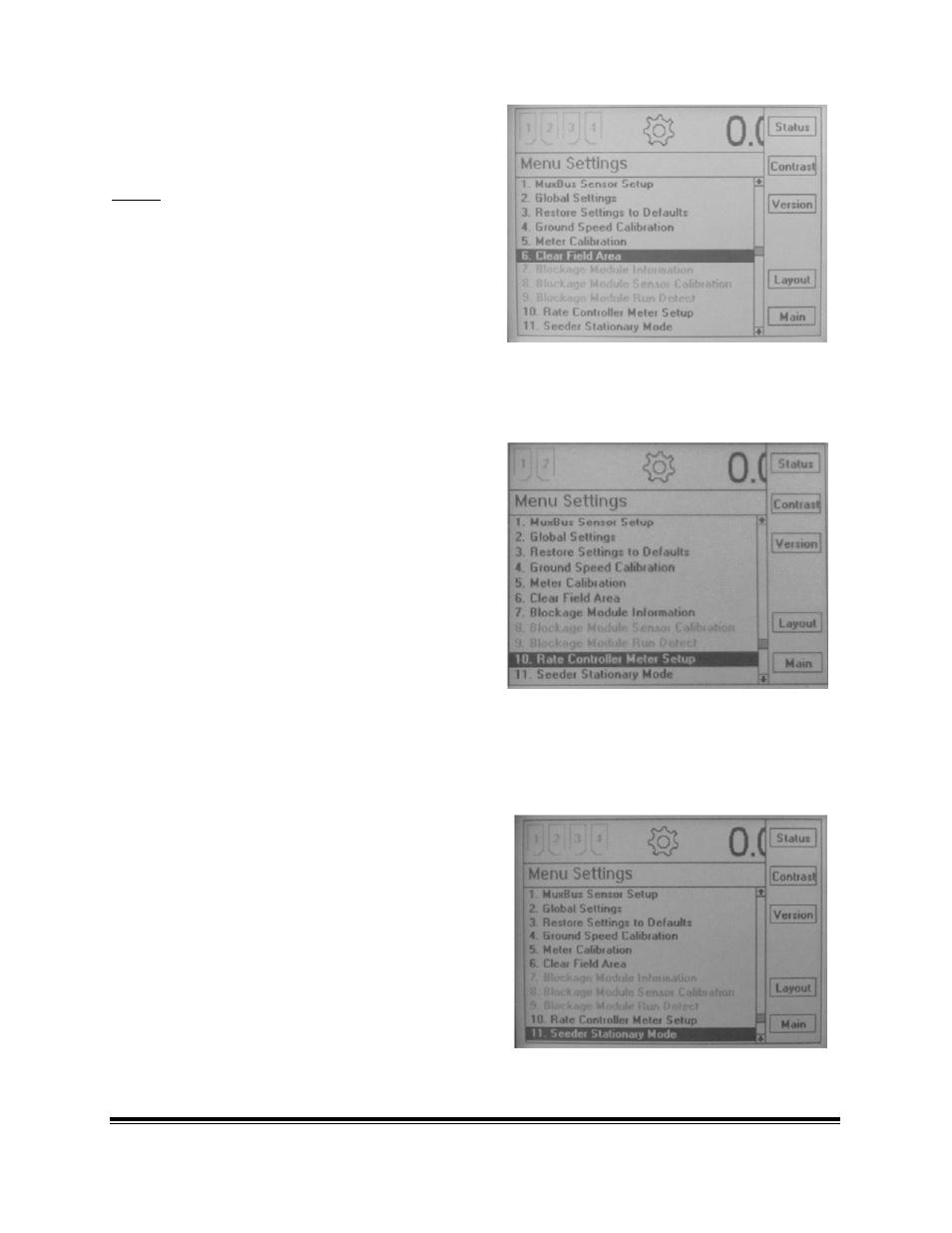

6. Clear Field Acres: Used to clear the field acre
register.
NOTE: The total acres cannot be cleared from the
Menu Settings screen. To clear the Total Acres a
USB drive with a program to clear the acres must
be used
7, 8, 9. These menu items are for use with Loup Electronics blockage monitoring and do not
currently apply to the Seed Hawk monitor.
10. Rate Controller Meter Setup: This menu
choice displays the application rate per meter
revolution determined by the individual meter
calibrations and allows the user to enter different
values directly if desired. This screen is where the
pulses per revolution of the meter rotation sensor
can be entered if a value different than the
factory configuration is needed and the increment
rate for on the go application rate changes is
entered for each meter. This screen is also where
the low meter RPM alarm point is set.
There is a screen available under this choice for each installed meter. Use the soft key to select
the meter settings, review and adjust. Four meters are shown but meters not installed cannot
be accessed.
11. Seeder Stationary Mode: This menu choice
allows the user to enter a simulated ground speed
so the implement can be operated standing still to
perform operational checks and trouble shoot
problems
FIGURE 4.43
FIGURE 4.44
FIGURE 4.42
