8. Option
8.4 Single Guide

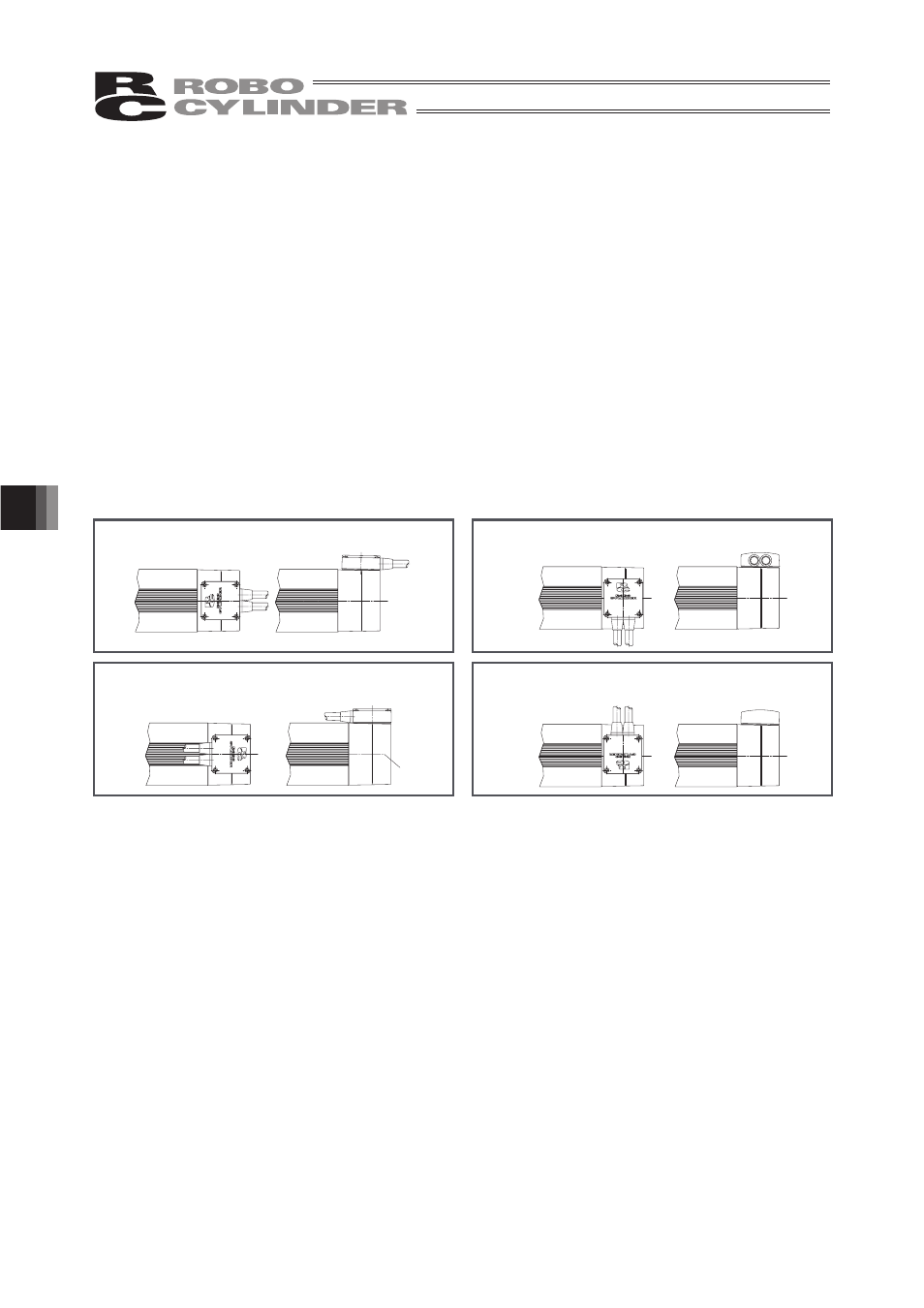

The position of the rod for each model equipped with the single guide is as shown below:
• Attached on Right : Model GS2
• Attached on Bottom : Model GS3
• Attached on Left : Model GS4
8.5 Reversed Home Specification
The reversed home type has the home position on the opposite side of the motor. The model code is
expressed with “NM”. If a change to the home position is required after the product is delivered, it is
necessary to adjust the movement direction parameters. Please contact us for a support.
8.6 Connector cable exit direction changed
There are 4 types of the connector cable exit directions as shown below:
Exit on Motor Direction (Standard)
ŶNo option to be specified (Not Specified)
Exit on Left Side
ŶOption Specification : A1
Exit on Right Side
ŶOption Specification : A3
Exit on Rod Direction
ŶOption Specification : A2
