FlexLink XT (макс. 30 кг) Монтаж - Manual (Page 8)

8 5113235
Locating function module P11A
Overview

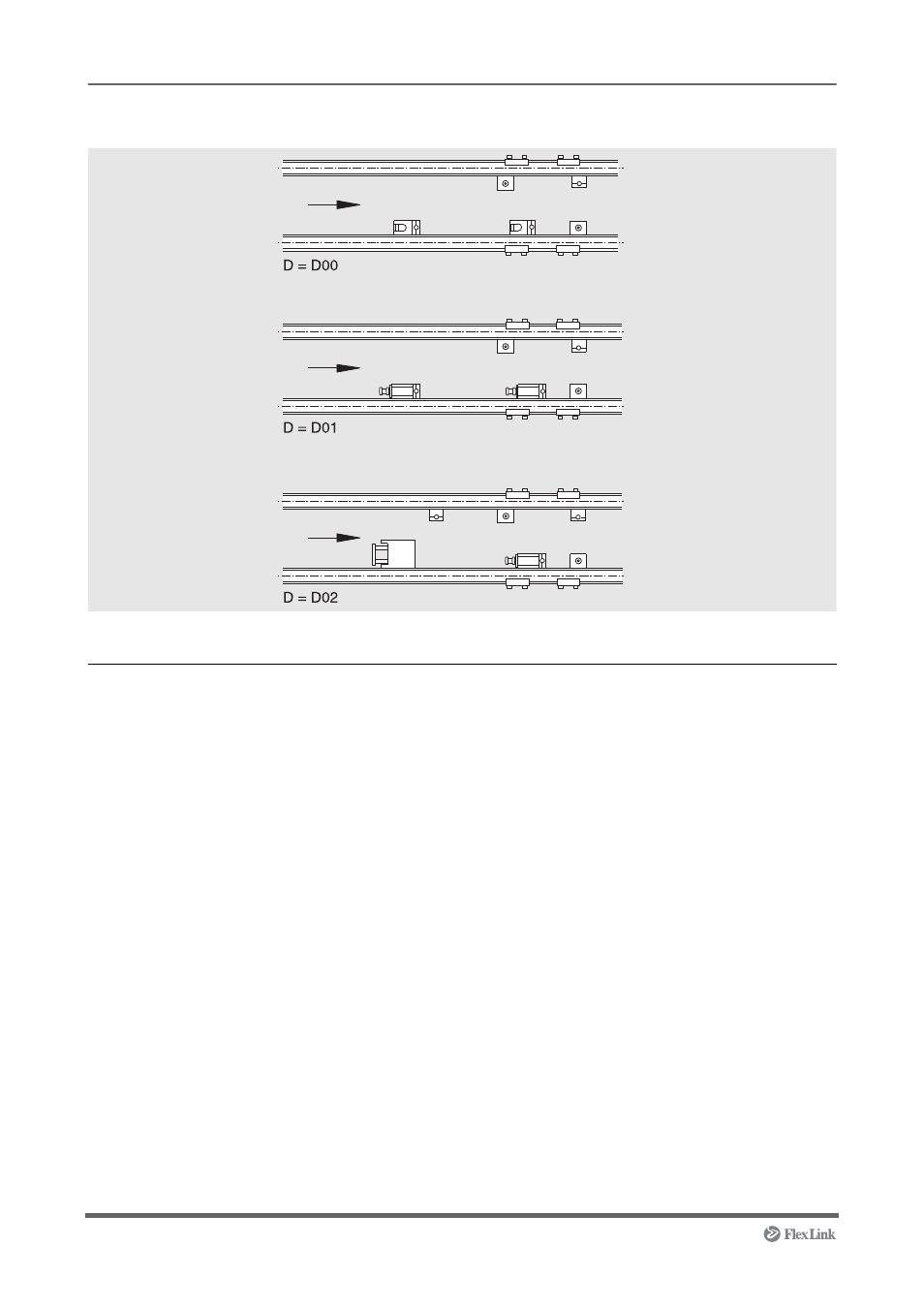

Placement of stop and sensor brackets, see Stop function module P11.
Pos Name Designation Instruction
1 Pallet stop device XTPD U200 See page 38
2 Pallet stop device damped XTPD D35 See page 40
3 Pallet stop device damped XTPD D100 See page 42
4 Sensor bracket XTPB V001 See page 43
5 Sensor bracket XTPB V002 See page 45
6 Locating station XTPX P11A See page 52
