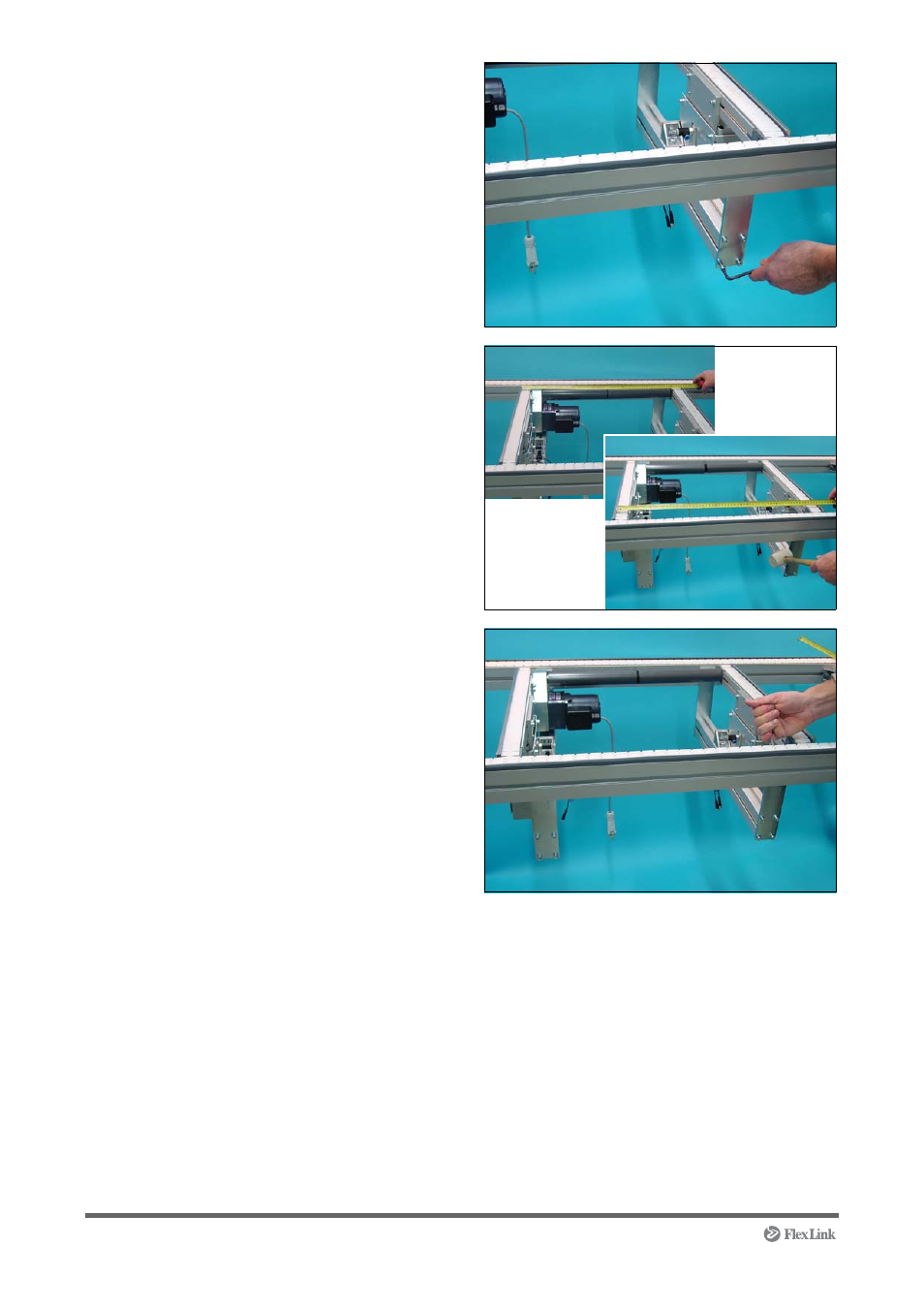

11 Use the remaining six screws to fasten the transit
unit half without motor.
12 Measure the transfer unit regarding the pallet
length (PL). From guide to stop the measure
should be PL+3 mm (approx). Adjust the transfer
unit half without motor to make it parallel to the
other transfer unit half.
13 Tighten the final screws holding the mounting
brackets on the transfer half without motor. Use
the 10 mm box wrench.
