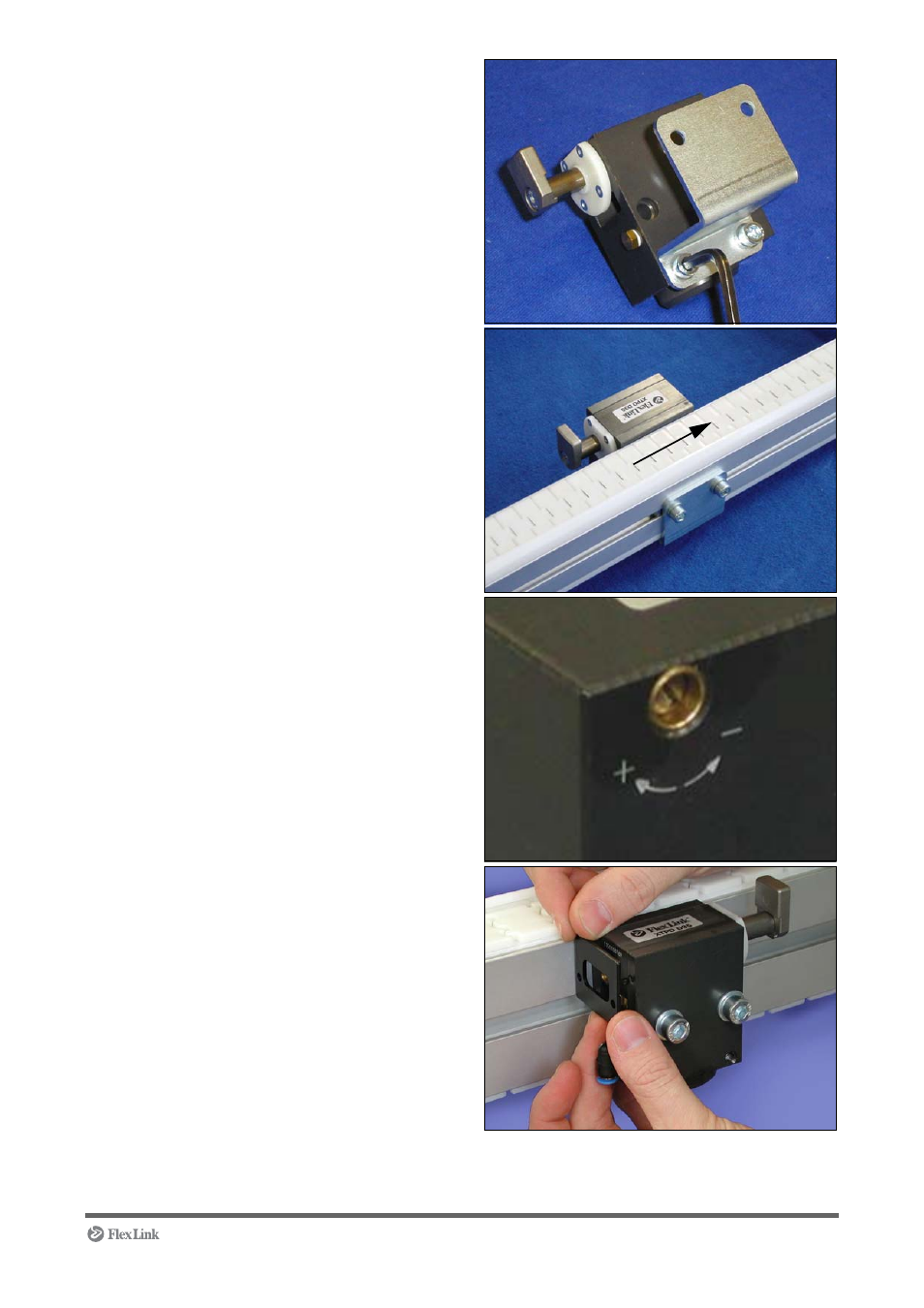

4 XT Compact conveyor:
Mount the bracket on the unit. Fit and tighten the
screws (2 x M6) with the 5 mm Allen key. Torque
value for tightening: 10 Nm.
5 XT Compact conveyor:
Insert the slot nuts (2 x M6) in the conveyor T-
slot.
Fit and tighten the screws (2 x M6). Use the 5
mm Allen key.
NOTE! The stop flange shall face against the
pallet direction of travel.
6 Pre adjust the damping screw according to the
following:
a) Turn the screw clockwise towards the “+” sign
until it reaches the end position. When you have
reached the end position turn it counter
clockwise 360° towards the “-” sign.
b) Fine adjust the damping when the system is
running. Turn the screw to the “+” sign to
increase the damping and to the “-” sign to
decrease the damping.
CAUTION! Heavy pallets in combination with an
over damped stop can damage the stop.
7 Mount the cover.
Pa
llet
di
rec
tio
n
