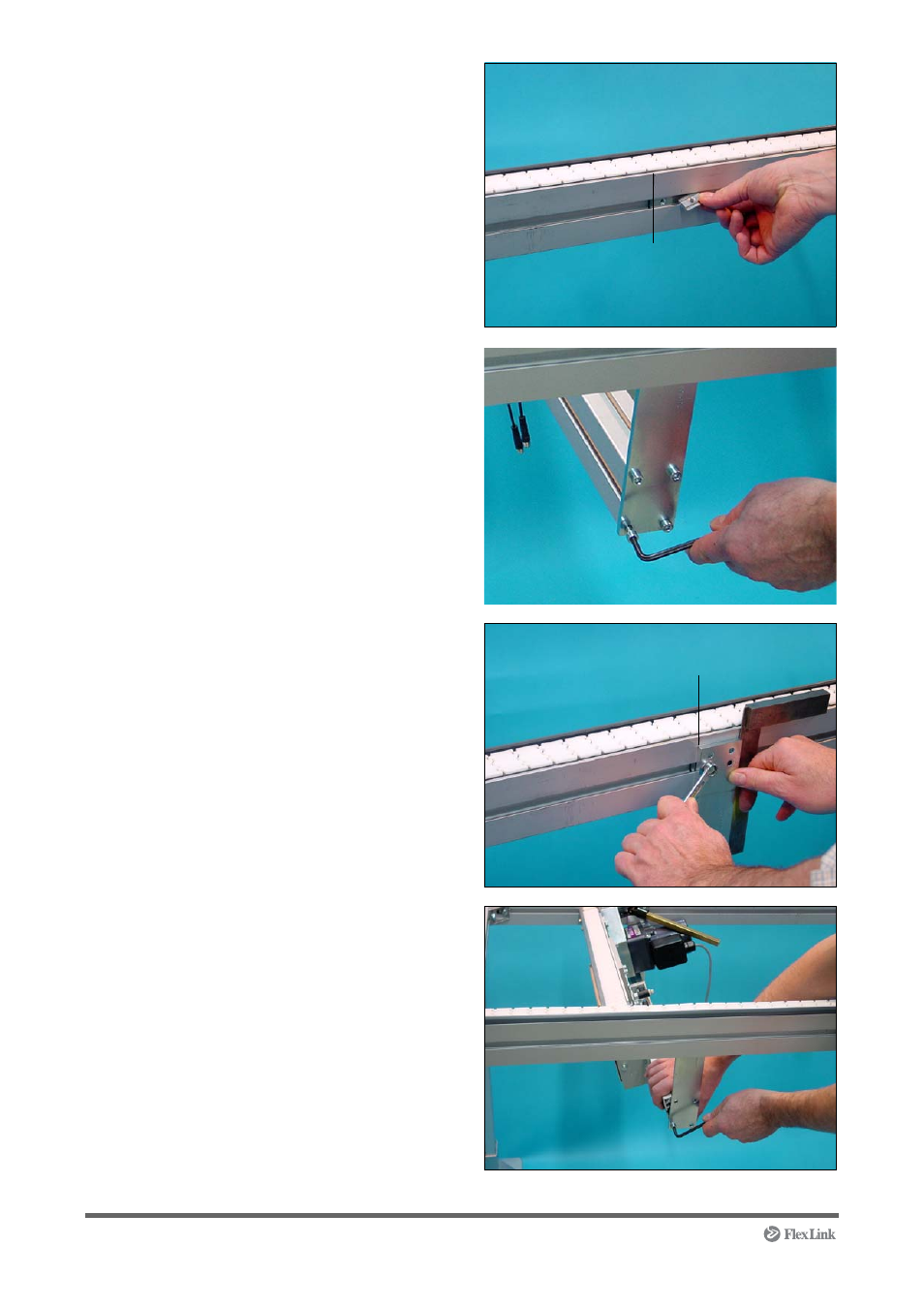

3 In the plastic bag enclosed in the shipment you
find the necessary slot nuts and bolts to attach
the transfer to the conveyor. Insert the slot nuts in
the T-slots on the conveyor beam. For conveyor
XT use XCAN 6 slot nuts (the larger ones) and
M6×16 bolts, for XT Compact use XFAN 6 slot
nuts and M6×14 bolts.
4 Disassemble the four mounting brackets.
5 Mount the four mounting brackets on the con-
veyor beam at the measured position found in
instruction no. 2. Use the 10 mm box wrench.
Make sure that the brackets are perpendicular to
the conveyor beam.
6 Mount the motor half of the transfer unit to the
brackets using the eight M6 screws. Use the 5
mm Allen key.
left/right position
right position
