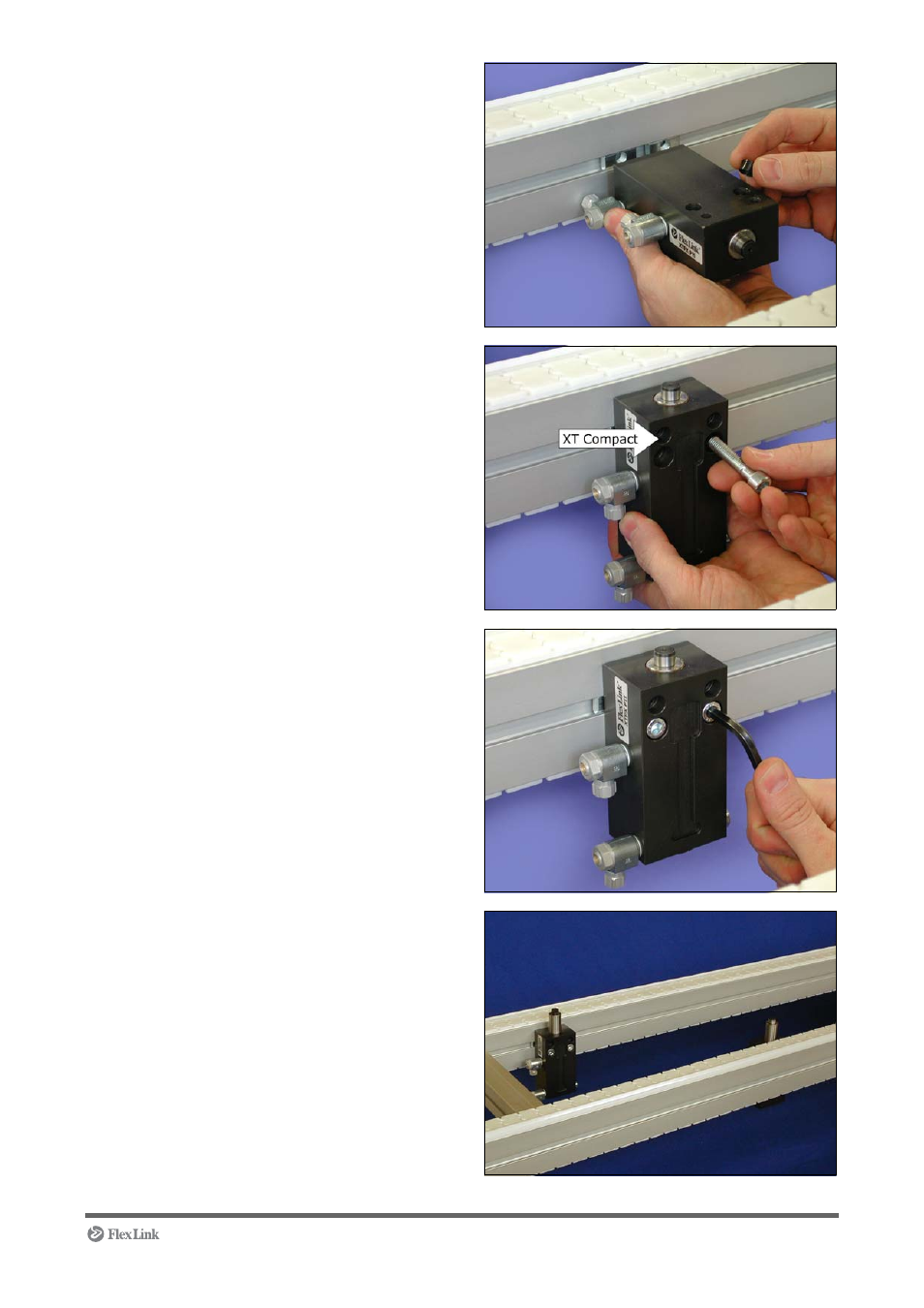

3 XT conveyor:
Insert the slot nuts (2xM8) in the conveyor T-slot.
Mount the bushings to the locating unit.
XT Compact conveyor:
Insert the slot nuts (2xM6) to the conveyor.
4 XT conveyor:
Fit the screws (2 x M8).
XT Compact conveyor:
Fit the screws (2 x M6). The arrow shows the
upper holes for fitting on XT Compact conveyor.
5 Do not tighten the screws permanently. Use the 6
mm Allen key.
6 Press the pistons out.
