22 5113235
Mounting chain to XT conveyor modules – End drive
Introduction
Valid for motor types M and HM (centre mounted
motor) and L and R (side mounted motor). If nothing
else is specified the instruction step is valid for both
centre and side mounted motor.
Tools
Instruction
Box wrench 10 mm
Box wrench 7 mm
Skip joint pliers
Pin insertion tool
Screwdriver

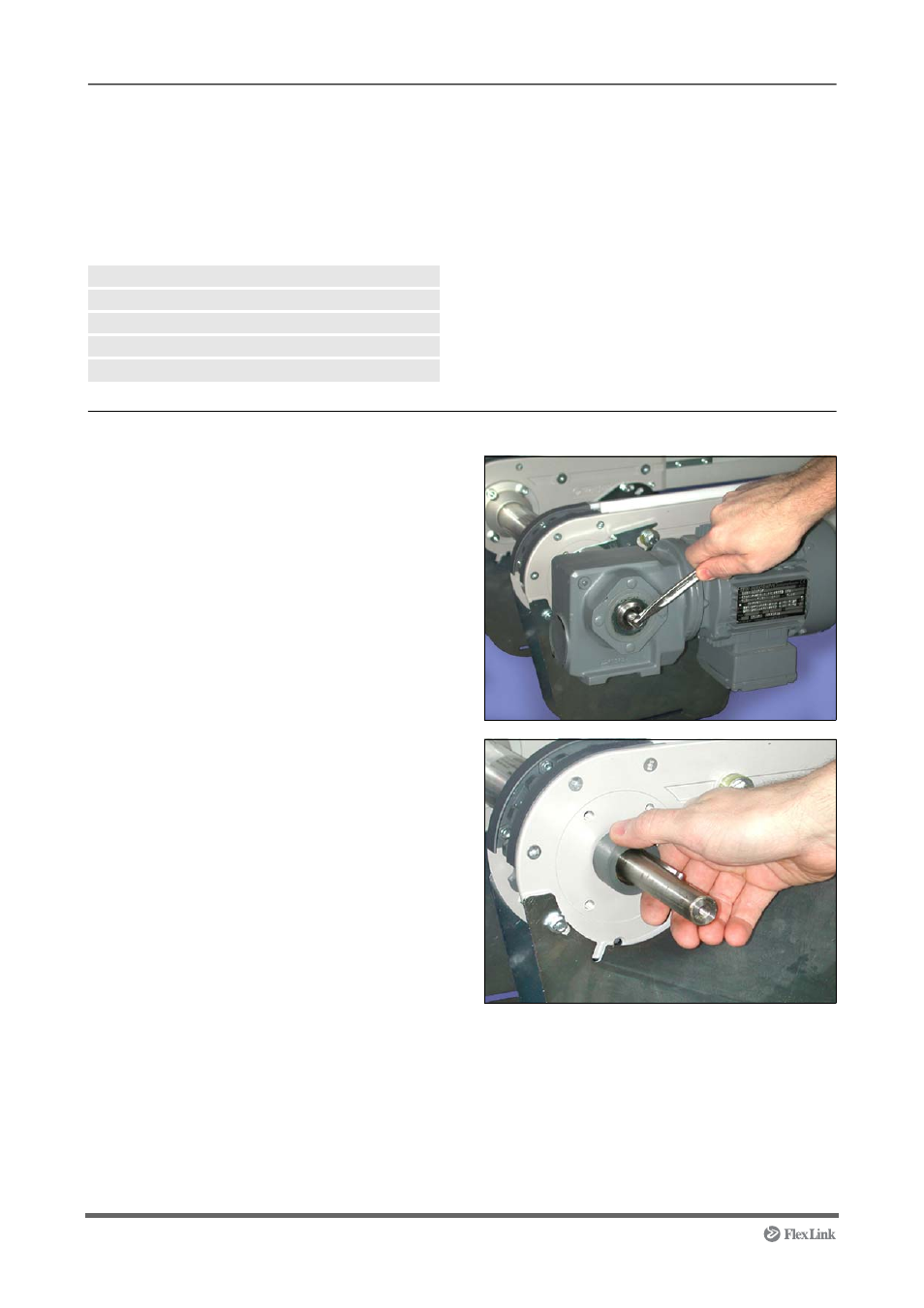

1 Side mounted motor:
Use the screwdriver to remove the plastic cap on
the motor. Loosen the screw for the motor with
the 10 mm socket wrench.
2 Side mounted motor:
Lift off the motor and remove the plastic sleeve.
