Mounting position sensor XTPB V003
Introduction
The sensor is not included in position sensor XTBP
V003. Mount the position sensor on the outside of
conveyor XT or XT Compact. If nothing else is
specified the instruction steps are valid for both XT
and XT Compact conveyors.
Tools
Instruction
Allen key 3 mm
Allen key 5 mm
Allen key 6 mm

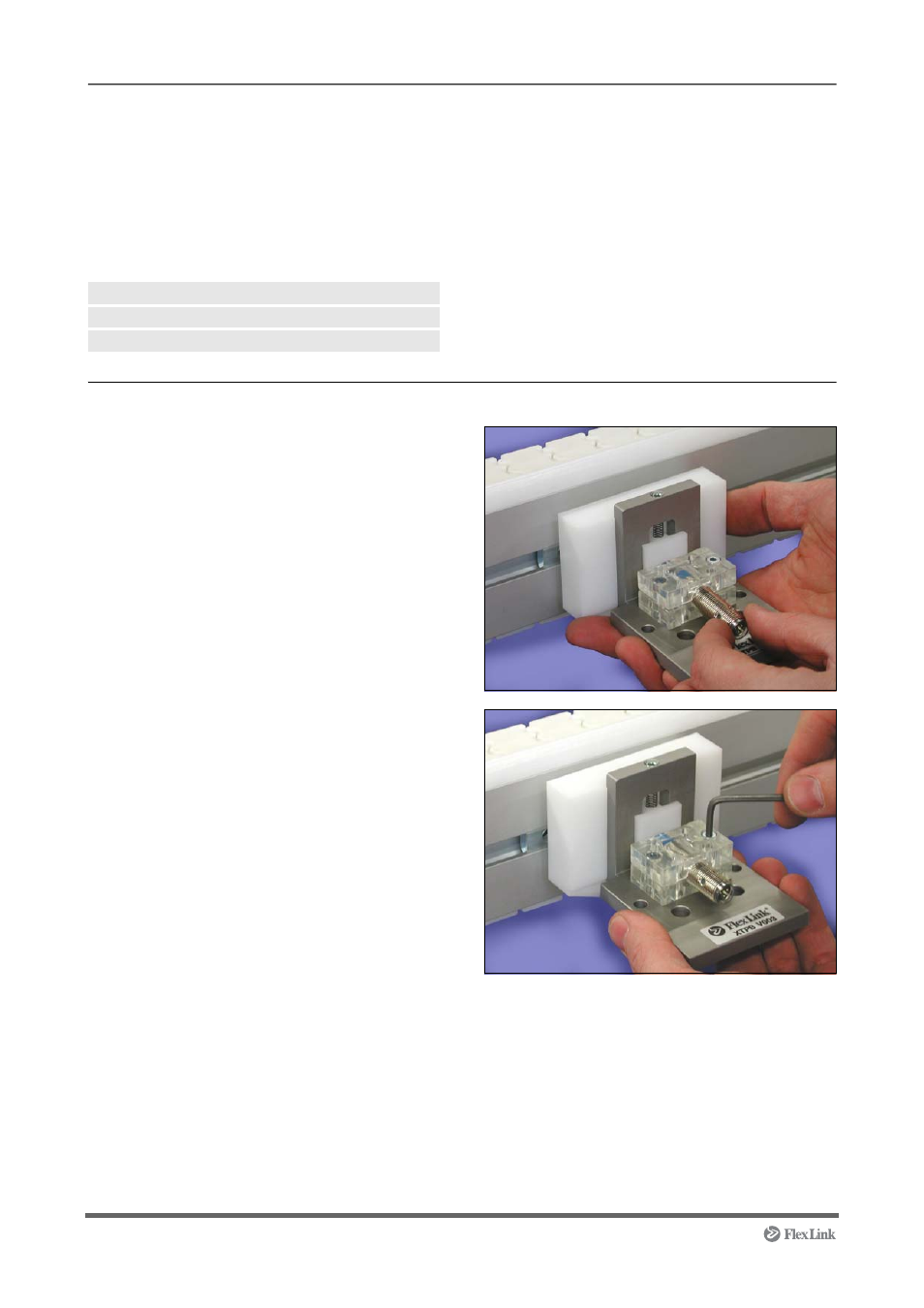

1 Fit the sensor to the sensor bracket.
2 Tighten the screws. Use the 3 mm Allen key.
