FlexLink XT (макс. 30 кг) Монтаж - Manual (Page 4)

4 5113235
Conveyor modules
Overview

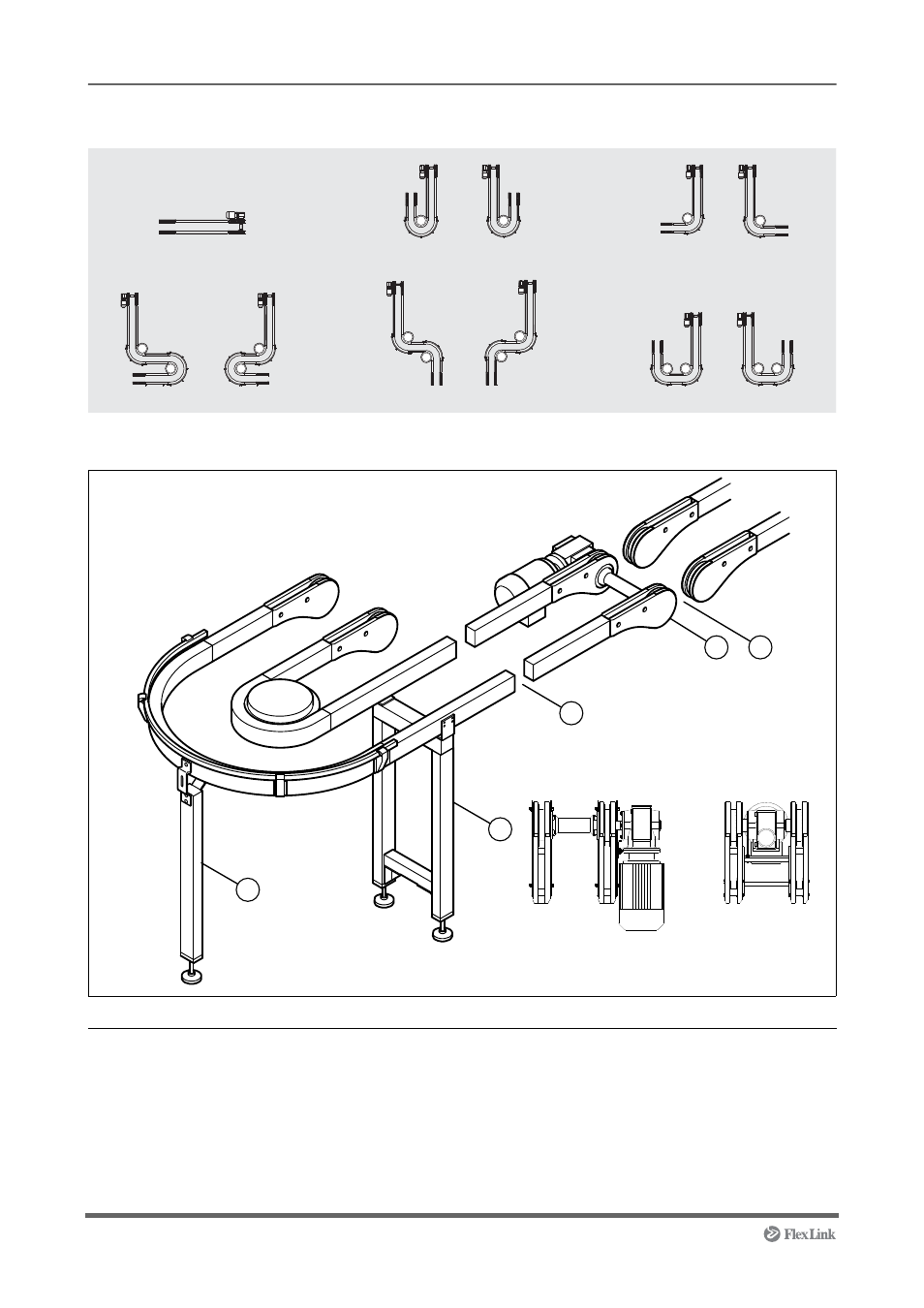

Assembly order
Pos Name Instruction
1 Mounting support module See page 35
2 Mounting support module in bend See page 35
3 Docking XT conveyor sections See page 20
4 Mounting chain to XT conveyor modules See page 22
5 Connecting an XT conveyor module in line with another XT
conveyor:
-Motor type L or R See page 31
-Motor type M or HM See page 33
XTUC J51 XTUC J52
XTUC F51 XTUC F52
XTUC L51 XTUC L52 XTUC S51
XTUC U51 XTUC U52 XTUC Z51 XTUC Z52
1
2
3
4 5
Motor type L/R Motor type M/HM
